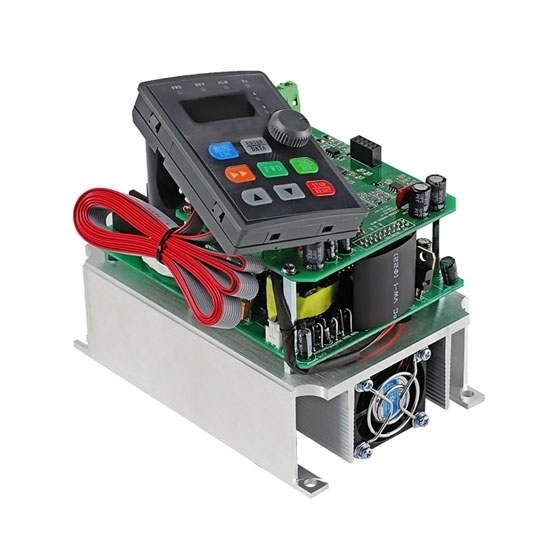

2 Hp Non-Enclosure VFD, 1ph Input, 3ph Output

0 reviews • Write a review

from

$161.55

Ex Tax: $161.55

Stock: In Stock
Model: GK3300-2S0015
Weight: 1.00
SKU: GK3300-2S0015

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Discounted 2 hp VFD, customized non-enclosure desgin, single phase input, 7.5 amps, brand new direct sale by manufacturer.

Specification:

Basics	Model	GK3300-2S0015
	Capacity	2 hp (1.5 kW)
	Shipping weight	887 g
	Dimension (LWH)	15098114 mm
I/O Feature	Rated current	7.5 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Whether the VFD is suitable for your application.
The main function of the variable frequency drive (VFD) is to change the speed of the AC motor. VFD also provides non-emergency start & stop control, acceleration, deceleration and overload protection. In addition, the frequency inverter can reduce the motor startup inrush current by gradually accelerating the motor. RDDLZ VFD is suitable for machines such as conveyors, fans and pumps which benefit from reduced and controlled motor operating speeds.
