1/4 Hp Non-Enclosure VFD, 1ph Input, 3ph Output

0 reviews • Write a review

from

$129.89

Ex Tax: $129.89

Stock: In Stock
Model: GK3300-2S0002
Weight: 1.00
SKU: GK3300-2S0002

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

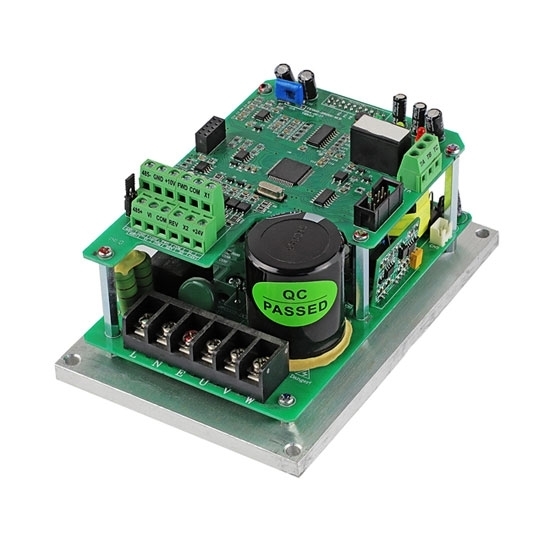

1/4 hp single phase VFD without enclosure, 0.2 kW, 220V single phase to 3 phase 220 volt output variable frequency drive, sale by manufacturer directly.

Specification:

Basics	Model	GK3300-2S0002
	Capacity	1/4 hp (0.2 kW)
	Shipping weight	665 g
	Dimension (LWH)	15110473 mm
I/O Feature	Rated current	1.6 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: The application usually determines the control mode of the VFD
Volts per Hertz (V/F)
V/F controls the ratio between voltage and frequency to change the motor flux, thereby providing the motor with operating torque. The V/F drive works well for most applications such as fans and water pumps.
Sensorless vector
Sensorless vector VFDs are known for their precise speed control over a wide speed range without encoder feedback, because they work well in open loop. The closed loop VFD uses encoder feedback to perform precise speed control by monitoring the actual motor speed and slip information. Sensorless vector and closed-loop VFD have excellent speed regulation, providing accurate speed control for paper mills, printing presses and other conversion applications.
