Portable Conductivity Meter, 100mS/cm, 220VAC

0 reviews • Write a review

from

$634.92

Ex Tax: $634.92

Stock: In Stock
Model: RDDLZ-CDTYM-100
Weight: 1.00
SKU: RDDLZ-CDTYM-100

Available Options

Short Description

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

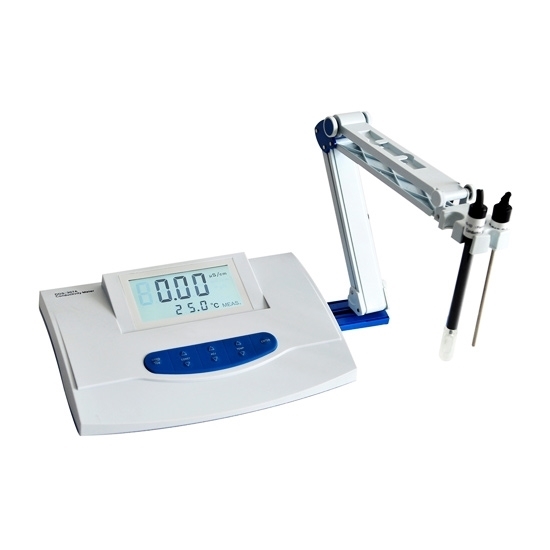

Portable conductivity meter with matched platinum black conductivity electrode & temperature sensor has measuring range 0μS/cm~100mS/cm, power supply AC 220V.

Specification

Model	RDDLZ-CDTYM-DDS-307A
Shipping weight	3kg
Dimension	30022090mm (LWH)
Measuring range *	Conductivity: Conductivity electrode (K=0.01): 0.0~2.0μS/cm Conductivity electrode (K=0.1): 0.2~20.0μS/cm Conductivity electrode (K=1.0): 2~10, 000μS/cm Conductivity electrode (K=10.0): 10, 000~100, 000μS/cm (10~100mS/cm)
	TDS: 0.000~1999 mg/L
	Temperatue: 0.0~99.9℃
Intrinsic error	Conductivity: ±1.0%FS
	TDS: ±1.0%FS
	Temperatue: ±0.3℃
Accuracy	±1.0%FS
Stability	±0.33%FS/3h
Temperature compensation	0~40℃ (32~104℉) manual/automatic
Temperature sensor	T-818-B-6
Display	LCD display can show measured conductivity value and temperature
Operation keys	Conductivity, Conductivity constant, Constant regulation, Temperature, ENTER
Functions	Automatic/manual temperature compensation, mutli-function electrode bracket
Power supply	AC 220V±22V, 50Hz±1Hz
Package included	1 * Portable conductivity meter (Model: RDDLZ-CDTYM-DDS-307A) 1 * Platinum black conductivity electrode (Model: RDDLZ-CDTYM-DJS-1C) 1 * Temperature sensor (Model: RDDLZ-CDTYM-T-818-B-6) 1 * Mutli-function electrode bracket (Model: RDDLZ-CDTYM-REX-I) 1 * Power cable 1 * User manual

Details

Tips: How to determine the conductivity electrode constant?
According to the formula K = S / G, the electrode constant K can be obtained by measuring the conductivity G of the conductivity electrode in a certain concentration of KCL solution. At this time, the conductivity S of the KCL solution is known. Because the concentration and temperature of the measuring solution are different, and the accuracy and frequency of the conductivity meter are also different, a large error sometimes occurs in the conductivity electrode constant K. And the electrode constant may also change after a period of use. Therefore, the electrode constants of newly purchased conductivity electrodes and conductivity electrodes after a period of use should be re-calibrated.
Pay attention to the following points when measuring the conductivity constant of the conductivity electrode:

The supporting conductivity meter should be used for measurement, and don't use other type of conductivity meter.
The temperature of the KCL solution should be preferably close to the temperature of the actual measured solution.
The concentration of the KCL solution should be preferably near the concentration of the actual measured solution.
