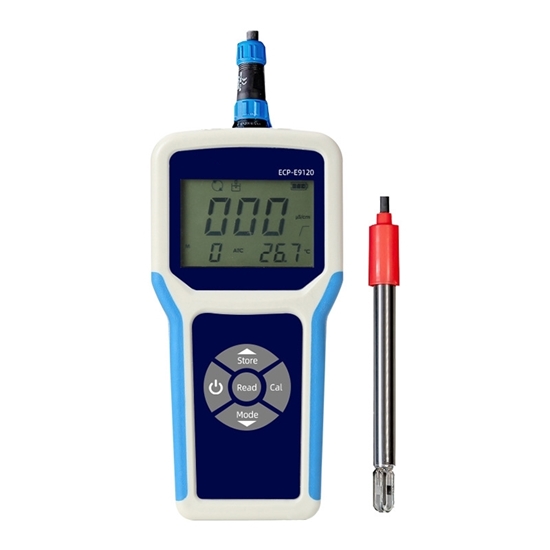

Handheld Digital Conductivity Meter, TDS/EC/Soil/Temp Tester

0 reviews • Write a review

from

$356.30

Ex Tax: $356.30

Stock: In Stock
Model: RDDLZ-CDTYM-E9120
Weight: 1.00
SKU: RDDLZ-CDTYM-E9120

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The shell of the handheld digital conductivity meter is made of ABS material, the LCD screen displays the test data, the calibration method is simple, and the historical data can be queried at any time. It has the advantages of small size and good stability. The conductivity range of the portable conductivity meter is 0μS/cm~199.9mS/cm, the TDS range is 0.1mg/L~199.9g/L, the salinity range is 0ppt~80ppt, the resistivity is 0Ω·cm~100MΩ·cm, and the temperature is 0℃~100℃. The conductivity electrode K=1.0 is equipped, and the measurement range is 0μS/cm~2000μS/cm.

Features

Automation: The reading of the portable conductivity meter is automatically stable and has automatic temperature compensation.
Simple calibration: The digital conductivity meter supports one-point/two-point/three-point calibration, 3 methods, and supports the selection of JJG/nist standard solution.
Storage function: The portable digital conductivity meter can query historical data at any time and can store up to 99 groups.

Specification

Model	RDDLZ-ECP-E9120
Measurement range	Conductivity	0.00μS/cm~199.9mS/cm
	TDS	0.1mg/L~199.9g/L
	Salinity	0.0ppt~80.0ppt
	Resistivity	0Ω·cm~100MΩ·cm
	Temperature (ATC/MTC)	0.0℃~100.0℃
Resolution	Conductivity	Automatic binning (0.01μS/cm, 0.1mS/cm)
	TDS	Automatic binning (0.1mg/L, 0.1g/L)
	Salinity	0.1ppt
	Resistivity	Automatic binning (1Ω·cm, 1MΩ·cm)
	Temperature	0.1℃
Conductivity electrode	Measuring range	0μS/cm~2000μS/cm
	Connector	SP13
	Constant	K=1.0
	Dimension	12*120mm
	Wire length	0.8m
Electronic unit error	Conductivity	±0.5%F.S
Electronic unit error	Temperature	±0.3℃
Data storage	99 pieces of measurement data
Power requirements	4xAA/LR6 (AA batteries)
Display	LCD display
Shell	ABS
Dimension	200x160x70mm

Applications

Tips: Working principle of conductivity meter

A handheld digital conductivity meter is an instrument that measures the conductivity of a solution. It works by passing an electric current through the solution and measuring the resistance of the solution, thereby determining the concentration of ions in the solution. The portable conductivity meters we offer are digital, providing highly accurate and repeatable measurements.
