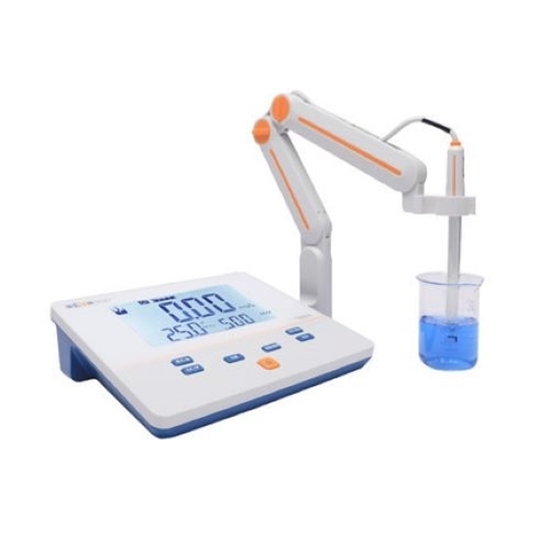

Desktop Electrical Conductivity Meter, 200mS/cm, DC 9V

0 reviews • Write a review

from

$761.38

Ex Tax: $761.38

Stock: In Stock
Model: RDDLZ-CDTYM-200
Weight: 1.00
SKU: RDDLZ-CDTYM-200

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Desktop electrical conductivity meter equipped with IP54 for dust and water resistance, the LCD screen displays ultra-high definition conductivity constant and data stability indicators and it can continuously read and balancedly read.

Specification

Model	RDDLZ-DDS-307A
Shipping weight	About 0.9kg
Dimension	242×195×68（mm) (LWH)
Standard electrode measurement range	2μS/cm~200mS/cm
TDS	1. Measuring rage: 0.00mg/L~100g/L 2. Electronic unit reference error: ±1.0% (FS) 3. Minimum resolution: 0.01mg/L (Optional according to range)
Standard electrode configuration	DJS-1VTC type conductive electrode (platinum black)
Temperature	1. Rage: (-5.0~110.0)℃ 2. Minimum resolution: 0.1℃ 3. Electronic unit element value erro: ±0.2℃
Measurement accuracy	Conductivity
Conductivity	1. Measuring range: 0.00μS/cm~200mS/cm 2. Minimum resolution: 0.01μS/cm (Optional according to range) 3. Electronic unit repeatability: 0.33% (FS) 4. Electronic unit reference error: ±1.0% (FS)
Operation keys	ON/OFF, CAL, MODE, UP & DOWN, STORE/RECALL, ENTER
Product components	LCD display screen, function selection button, power switch key, electrode bracket, conductive electrode
Power supply	Power adapter (input: AC100~240V, output: DC9V)
Working temperature	(-5.0~110.0)℃
Conductivity level	Level 1.0

Tips: How to operate desktop electrical conductivity meter

Start up: Install conductivity electrodes and temperature electrodes on the electrode frame, and clean the electrodes with distilled water.
Connect the power cord, turn on the instrument switch, and the instrument will enter the measurement mode. After preheating for 30 minutes, the measurement can be carried out. Set parameters and press the "conductivity/pyroelectric" button to switch the conductivity and pyroelectric coefficient. Set the current temperature value by pressing the "temperature" button (no temperature value is set when inserting the temperature electrode, the current temperature is measured by the temperature electrode).
Press the "Electrode Constant" and "Constant Adjustment" keys to set the electrode constant. Press the "Conductivity/TDS" button to enter the conductivity or measurement state for TDS or conductivity measurement
Clean the electrode head with distilled water, and then rinse it once with the test solution. Immerse the temperature electrode and conductive electrode into the solution. Stir the solution with a glass rod to make it uniform. Read the conductivity or TDS value on the display screen.
After measurement, discard the sample, clean the electrode, drain the water on the electrode tip with filter paper, and place a protective cover containing KCl solution on the electrode

Note: Desktop electrical conductivity meter has been calibrated before delivery, and can be used directly.
