Wall Mounted Decibel Meter, 30 To 130dB
from
$116.25
Ex Tax: $116.25
- Stock: In Stock
- Model: RDDLZ-WMDM-525
- Weight: 1.00
- SKU: RDDLZ-WMDM-525
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

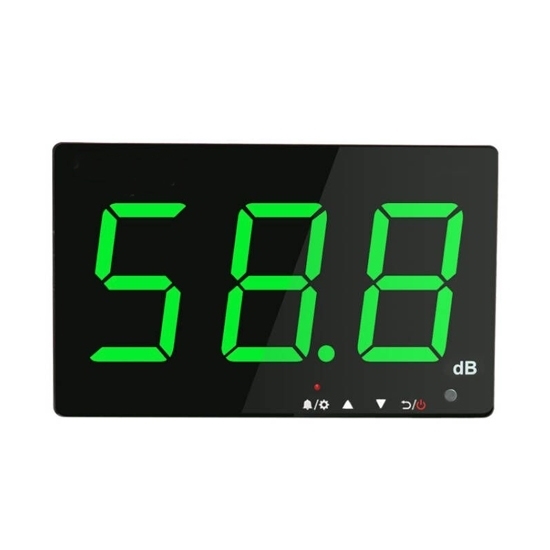

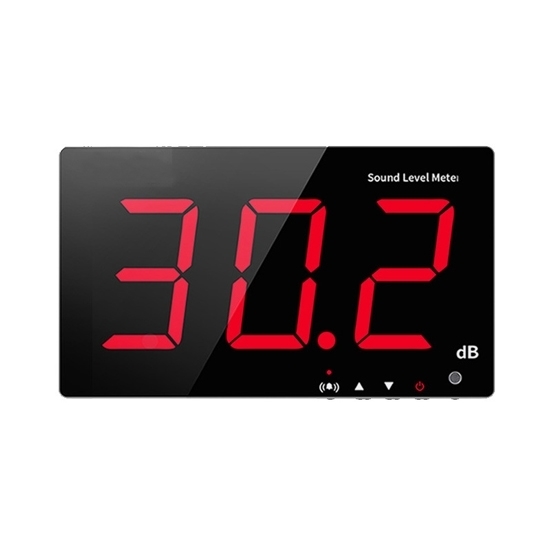

Low-cost wall mounted decibel meter with a 30 to 130dB measurement range, 4 styles of noise level meter for selection, widely used in industrial facilities, offices, schools, hospitals and public places.
Specifications
Model | RDDLZ-SW525A | RDDLZ-SW525B | RDDLZ-SW525G | RDDLZ-SW526A |
Light | Red | Red | Green | Red |
Measuring Range | 30~130dB | |||
Accuracy | +1.5dB (In Standard Sound: 94dB@1KHz) | |||
Frequency Range | 31.5 Hz~8.5 KHz | |||
Frequency Weighting | A | |||
Response Time | Fast | |||
Microphone | 6mm Capacitance Microphone | |||
Display | 3 Digits Display | |||
Resolution | 0.1dB (30.0~99.9), 1dB (100~130) | |||
Alarm Reminder (Sound+ Display) | Yes | |||
Alarm Output | Yes | |||
Storage Function | No | 2 secs/times, Can be Stored for 1 Year | Support SD Card Expansion | |
Communication | No | via USB Cable | No | |
Power Supply | DCSV 1A Micro USB Outlet | DC 5V 2A | ||
Operating Conditions | 0~40℃, 10%~80%RH | |||
Storage Conditions | -10~60°C,10%~70%RH | |||
Dimensions | 210x130x28mm | 400x230x34.5mm | ||
Weight | 453g | 1422g |
Dimensions (Unit: mm)
Details
Applications
Tips: Advantages of Wall-Mounted Decibel Meter
- Accurate and Reliable Measurements: Wall-mounted decibel meters are designed to provide precise and reliable measurements of sound levels. They use sensitive microphones and advanced technology to ensure accurate readings, making them ideal for environments where accurate noise monitoring is crucial.
- Continuous Monitoring: These meters can be left in place for continuous monitoring of sound levels. They are often used in industrial settings, construction sites, and laboratories where constant monitoring of noise levels is necessary to maintain safety standards and comply with regulations.
- Space-saving and Convenient: Wall-mounting the decibel meter eliminates the need for additional floor or desk space, making them an ideal choice for areas where space is limited. They can be easily mounted on walls or panels, allowing for convenient installation and ensuring they stay securely in place.
- Visual Display: Most wall-mounted decibel meters feature clear and easy-to-read visual displays. This allows users to quickly assess sound levels at a glance, providing instant feedback on noise levels in the environment.
- Data Logging and Analysis: Many wall-mounted decibel meters have built-in data logging capabilities. They can record sound level data over time, allowing for analysis and trend monitoring. This is particularly useful in environments where long-term noise exposure needs to be evaluated or when tracking noise levels during specific periods.
- Alarms and Notifications: Advanced wall-mounted decibel meters may have alarm features that can be set to trigger when sound levels exceed certain thresholds. This helps alert users when noise levels reach potentially hazardous or disruptive levels.
