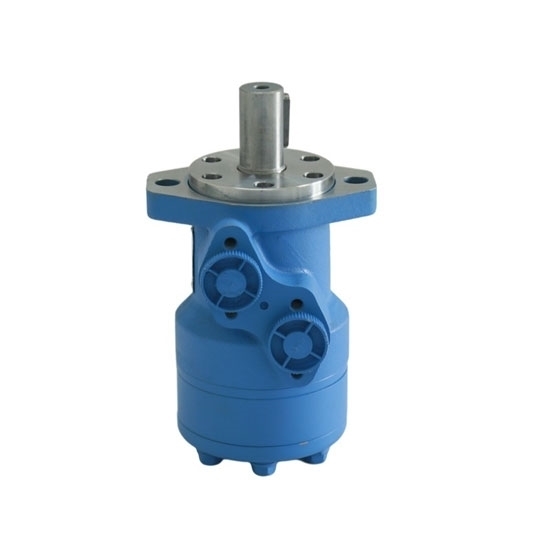

Hydraulic Orbital Motor, 80cc/rev

0 reviews • Write a review

from

$317.49

Ex Tax: $317.49

Stock: In Stock
Model: RDDLZ-HOM-80
Weight: 1.00
SKU: RDDLZ-HOM-80

Available Options

Short Description

Shaft Type

Flange Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High torque low speed orbital hydraulic motor is widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machines, cleaners, grass cutters, winches, conveyors, slews, sweeper drives, augers, cutters, mowers and chippers.

Specification

Model		RDDLZ-OMP-80
Shaft Type (Optional)		Flat Key, Splined
Flange Type (Optional)		2 Bolts, 4 Bolts
Displacement		80 cc/rev (80 cm³/rev)
Working Pressure		15 MPa
Flow	Continuous	57 LPM
	Intermittent	68 LPM
Max.Speed	Continuous	679 rpm
	Intermittent	811 rpm
Pressure	Continuous	124 ∆Bar
	Intermittent	138 ∆Bar
Torque	Continuous	124 Nm
	Intermittent	139 Nm
Weight		7kg

Note:

A simultaneous maximum torque and maximum speed are not recommended.
∆Bar refers to true pressure difference between inlet port and outlet port.
Continuous Rating means that the motor may be run continuously at these ratings.
Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=146mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=152mm

Details

Tips: What is the relationship between orbital motor and hydraulic pump?

The orbital motor is a power unit and is used to provide torque. The hydraulic pump supplies oil and pressure to the hydraulic orbital motor. It is equivalent to the relationship between the battery and the motor.
