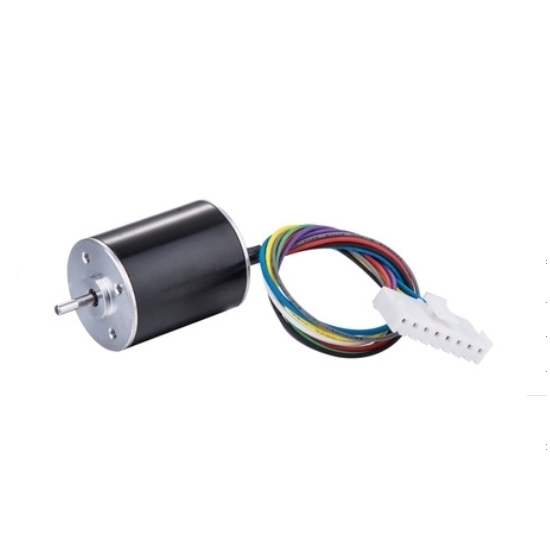

11000 Rpm 12V 24V Small Brushless DC Motor

11000 Rpm 12V 24V Small Brushless DC Motor
11000 Rpm 12V 24V Small Brushless DC Motor
0 reviews • Write a review
from
$238.79
Ex Tax: $238.79
  • Stock: In Stock
  • Model: RDDLZ-BLDC-11000R
  • Weight: 1.00
  • SKU: RDDLZ-BLDC-11000R

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Small Brushless DC motor Description

12V/24V BLDC motor, with rated speed of 8250 rpm and noload speed up to 11000 high rpm, 3 phase, 4 pole, 67W rated power. Small electric motor with mini size, easy to wire and install.

11000 rpm High Speed BLDC Motor Specifications

BasicsModelRDDLZWS4255-110
TypeMicro Brushless DC Motor
Weight210g
SizeD:42mm, L:55mm
UsageBoat, Car, Electric Bicycle, Home Appliance, Industrial Equiment
Technical ParametersRated Power67W
Rated Voltage12V DC24V DC
Rated Current5.83A2.91A
Noload Current0.81A0.39A
Rated Speed8520 rpm
Noload Speed11000 rpm
Rated Torque58.1 mN.m
ConstructionPermanent Magnet
BearingNMB Ball Bearing
Efficiency90%
Motor HousingStainless steel
Insulation ClassClass B
Protect FeatureExplosion-proof
Wiring DiagramPin 1Red+5V
Pin 2PurpleHall A
Pin 3GreenHall B
Pin 4GreyHall C
Pin 5BlackGND
Pin 6YellowPhase A
Pin 7BluePhase B
Pin 8WhitePhase C
Click to see the matched controller specs

12V/24V Small BLDC Motor Dimension

Details

Tips: Advantages of Brushless DC Motor

  1. Brushless dc motor doesn't have a brush and has low interference.
  2. Without a brush, the DC brushless motor would not generate sparks as the brush motor, thus reducing the interference of sparks on the remote control radio equipment.
  3. Brushless motor has low noise and operates smoothly.
  4. Without a brush, the friction force of DC brushless motor is greatly reduced, the motor runs smoothly while noise reduces greatly. This advantage of the brushless motor is a great support for the operational stability of models.
  5. Brushless motor has a long service life and requires low maintenance cost.
  6. Without a brush, main friction occurs at bearings of the brushless motor. From another point of view, brushless motor is almost free of maintenance, as long as wiping dust for maintenance.
