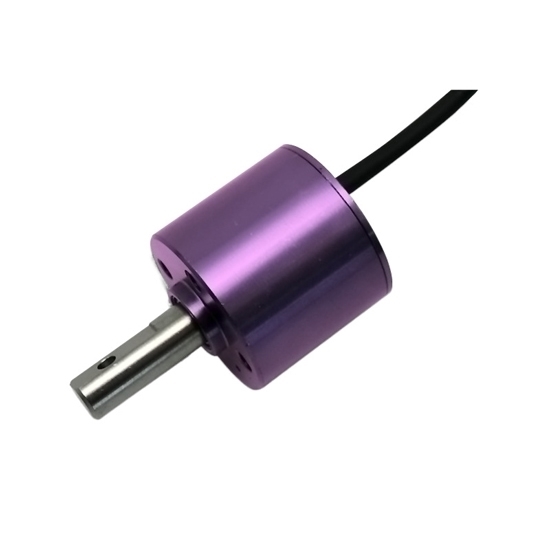

Non-contact magnetic angle sensor operates based on magnetic field variations as the angle changes. Utilizing Hall Effect sensors and magnetoresistive elements, it detects the rotational movement in relation to a magnetic field.

Specification

Dimensions (Unit: mm)

Output Characteristics

Applications

Tips: What factors should be considered when selecting a magnetic angle sensor?

When selecting a magnetic rotary angle sensor, several factors must be considered to ensure optimal performance. First, the sensor's resolution and accuracy are crucial, as they determine the device's ability to provide precise angle measurements. The operating range, or the range of angles the sensor can effectively detect, should match the application's requirements. Consider environmental conditions, such as temperature and humidity, as they can impact sensor performance. Evaluate the sensor's response time and update rate to ensure it meets real-time application needs. Additionally, assess the sensor's output interface compatibility and power consumption to integrate seamlessly into the system. Finally, consider the cost and form factor, balancing performance requirements with budget constraints and physical space limitations. Overall, a thorough evaluation of resolution, range, environmental conditions, response time, interface, power consumption, and cost is essential for selecting the right magnetic angle sensor for a specific application.
