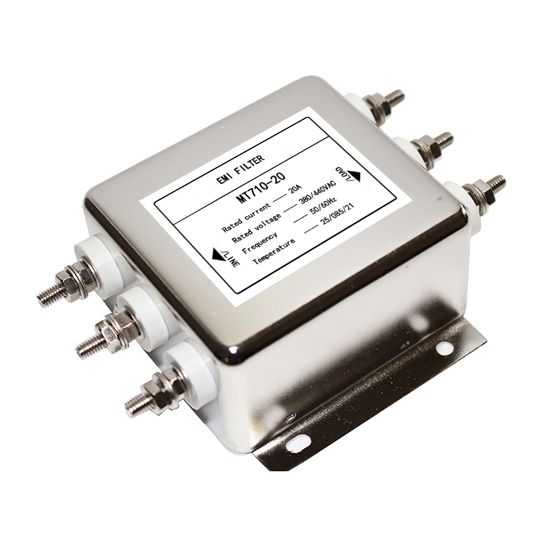

EMI/RFI Power Line Filter 20A, 3 Phase

0 reviews • Write a review

from

$97.07

Ex Tax: $97.07

Stock: In Stock
Model: RDDLZ-EMI-1020
Weight: 1.00
SKU: RDDLZ-EMI-1020

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

20A EMI/RFI power line filter is a general purpose 3-phase 3-wire power filter with excellent differential mode and common mode attenuation performance in industrial automation equipment such as 3-phase motor drive, UPS, packaging equipment, textile equipment, industrial air conditioners, etc.

Specification

Model	RDDLZ-MT710-20
Filter Type	EMI
Configuration	Single Stage
Rated Current @ 40℃	20A
Rated Voltage	250V/440V AC
Operating Frequency	50/60Hz
Phase	Three Phase Three Wire
Leakage Current	≤5mA @ 250V AC 50Hz 20℃
Filter Range	150KHz-30MHz
Hipot Rating (one minute)	Line to Line	1450V DC
	Line to Ground	2250V DC
Climatic Category	25/085/21
Working Temperature	-25°C~+85°C
Output Termainal	Threaded stud M4
Weight	600g
Dimension	See below

Dimensions (Unit: mm)

Electrical Schematic

Insertion Loss Table (in 50Ω system acccording to IEC/CISPR No.17)

Tips: Performance of EMI/RFI line filter in power supply equipment

Prevent outside electromagnetic noise from interfering control circuit working of power supply equipment.
Prevent outside electromagnetic noise from interfering power supply loading.
Restrain the EMI generating from power supply equipment itself.
Restrain the EMI which is generated by other equipment and passes through the power supply.

When switching power supply is working and electronic equipment is under switching on/off status, it may appear terminal noise at power supply equipment input end and generate radiation and conducting interference, which may also enter AC power grid and interfere other electronic equipment. Therefore, it should take effective measures to restrain. Electromagnetic shielding is the best way for restraining radiation interference of EMI noise. Using EMI/RFI line filter is very effective measure for restraining conducting interference of EMI noise.
