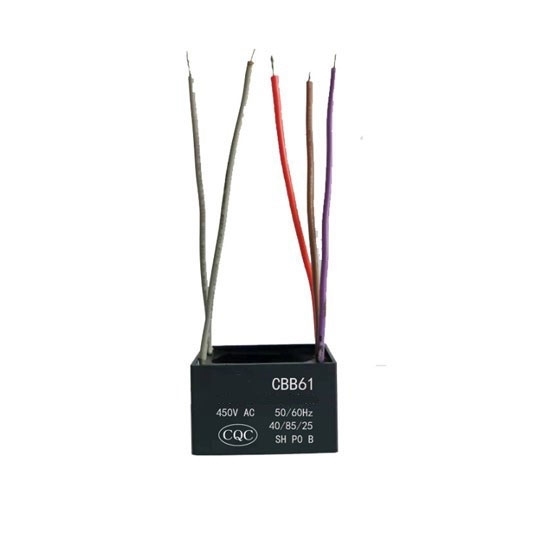

450V Ceiling Fan Capacitor, 4μF+5μF+6μF

0 reviews • Write a review

from

$1.79

Ex Tax: $1.79

Stock: In Stock
Model: RDDLZ-FC-CBB61-456
Weight: 1.00
SKU: RDDLZ-FC-CBB61-456

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Selling cheap ceiling fan capacitor, capacity 4mfd+5mfd+6mfd, tolerance 5%, if the ceiling fan work deceleration or can not work or can not work at different speed, please check first whether the capacitor is burned out or become weak, if so, you need to replace the new capacitor.

Specification

Model: RDDLZ-FC-CBB61-456
Capacity: 4μF+5μF+6μF
Rated Voltage: 450V/500V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/85/23
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 48(W) x 27(L) x 40(H)mm
Certificate: CE, CQC

5 Wire Ceiling Fan Capacitor Connection Diagram

Tips: Does a single-phase motor have to be equipped with a capacitor?

Not all single-phase motors have to be equipped with capacitors either. The following motors do not need capacitors:
1. series excitation motor
2. shaded-pole motor
3. Split-phase motors
4. Do not need to match the capacitor
