2.2μF tantalum capacitor is a subtype of electrolytic capacitor. RDDLZ provides high quality and good price tantalum capacitor for you. DIP tantalum capacitor and SMD tantalum capacitor can be chosen.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

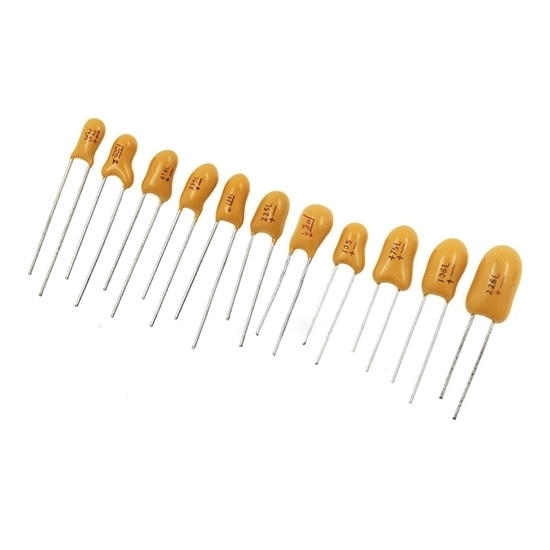

DIP Tantalum Capacitor Dimension: (Unit: mm)

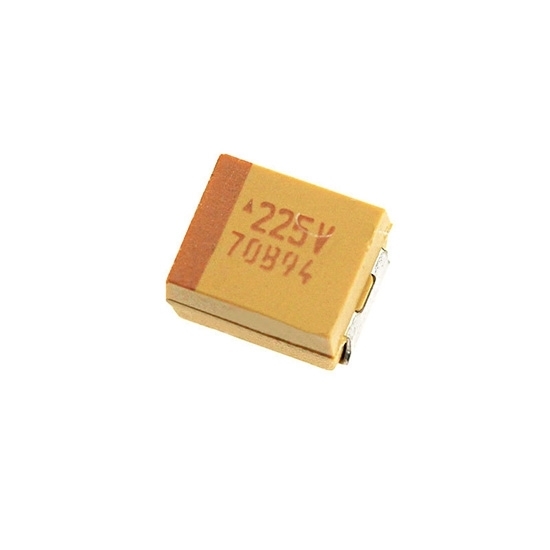

SMD Tantalum Capacitor Dimension: (Unit: mm)

B: L= 3.5, S= 0.8, W₁= 2.8, W₂= 2.2, H= 1.6

Tips: Tantalum Capacitor General Characteristics

Tantalum capacitors are made with capacitance values ranging from 1nF all the way to 72mF and they are much smaller in size than aluminum electrolytic capacitors of the same capacitance. The voltage rating for tantalum capacitors varies from 2V to more than 500V. They have an equivalent series resistance (ESR) ten times smaller than the ESR of aluminum electrolytic capacitors, which allows for larger currents to pass through the capacitor with less heat generated. Tantalum capacitors are very stable over time and their capacitance doesn't change with age significantly, especially when compared to aluminum electrolytic capacitors. They are very reliable when handled properly and their shelf life is virtually unlimited.
