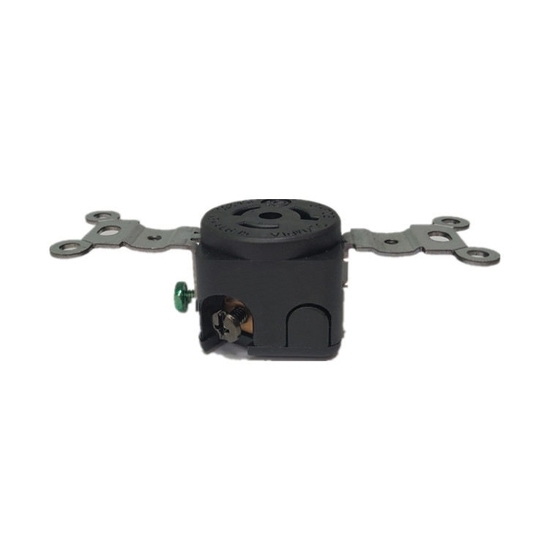

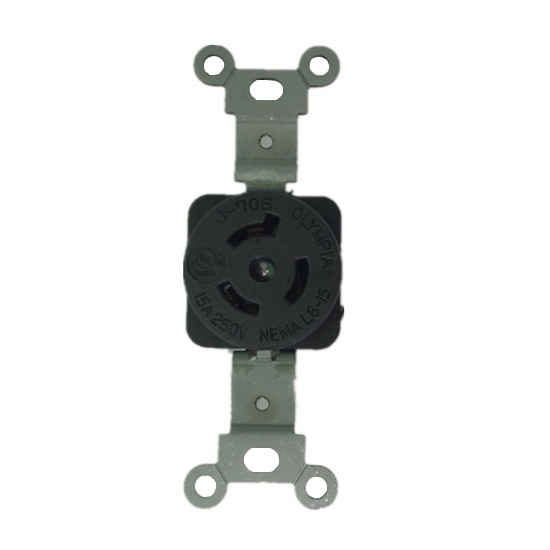

15A 250V Locking Receptacle, 2 Pole, 3 Wire

0 reviews • Write a review

from

$54.21

Ex Tax: $54.21

Stock: In Stock
Model: RDDLZ-BL6-15R
Weight: 1.00
SKU: RDDLZ-BL6-15R

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

15 amp 250 volt twist lock receptacle utilize a twisting method with a plug to establish a connection, helping you avoid the danger of loose plugs.

Specification

Model: RDDLZ-BL6-15R
Certification: UL
Grounding: Standard Grounding
Rated Voltage: 250 Volt
Rated Current: 15 Amp
Application: Commercial
Flammability: Rated V-2 per UL94
Back Cover: Thermoplastic
Color: Black
Pole: 2
Wire: 3
Body Material: Super Tough Nylon
Assembly Screws: Steel, Zinc Plated
Terminal Screws: Brass
Standard and Certification: UL498

Tips: How to install a locking receptacle?

To install a twist lock receptacle, use the three color-coded wiring terminals of the plug, including the positive terminal, the neutral terminal and the ground terminal.

Wrap the hot wire or positive wire (black wire) clockwise around the screw in the gold terminal, and then tighten the screw.
Take a neutral wire (gray or white) and wind it clockwise around the screw in the silver terminal of the twist lock receptacle. Make sure the screws are tight.
Locate the ground wire (green or green and yellow) and twist the strand to form a wire. Take that wire and wind it around the screw at the green terminal of the plug. Tighten the screws.
