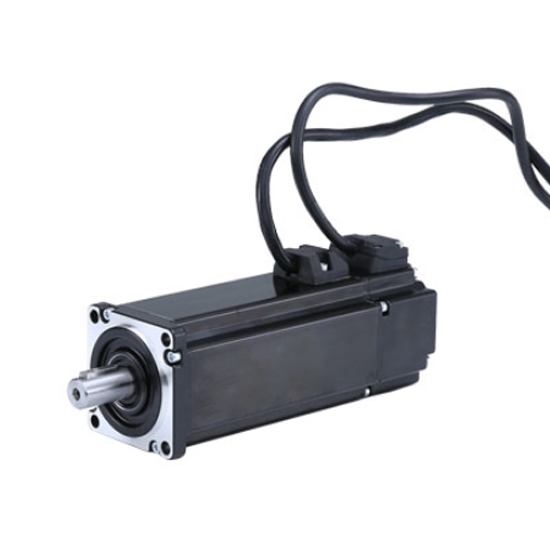

600W High Torque AC Servo Motor, 1.9 Nm, 3000 Rpm

0 reviews • Write a review

from

$476.63

Ex Tax: $476.63

Stock: In Stock
Model: ATO60ST-M01930
Weight: 1.00
SKU: ATO60ST-M01930

Available Options

Short Description

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

600 watt electric strong AC servo motor, 3000 rpm rated speed, 1.9 Nm rated torque, peak torque of 5.7 Nm, incremental encoder or absolute encoder can be chosen.

Note: For 600W AC Servo Motor, RDDLZ Provides upgraded models with more powerful features. Please go to the page https://www.ato.com/600w-ac-servo-motor.

Specification

Basics	Model	RDDLZ60ST-M01930
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	60 mm
	Rated Power	600 W
	Rated Voltage	single phase or three phase 220V AC
	Rated Current	3.5 A
	Rated Speed	3000 rpm
	Rated Torque	1.9 Nm
	Peak Torque	5.73 Nm
	Weight	2 Kg
	Length	169 mm
Technical Parameters	Voltage Constant	34 V/ 1000r/ min
	Torque Coefficient	0.55 N.m/ A
	Torque Inertia	0.39 x 10^-4 Kg.M²
	Line-Line Resistance	1.93 Ω
	Line-Line Inductance	10.7 mH
	Electrical Time-Constant	5.5 ms
	Incremental Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit: mm)

L (without brake): 169mm, L (with brake): 217mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Incremental Encoder Line	U (Red)	V (Yellow)	W (Blue)	PE (Yellow-Green)
	Absolute Encoder Line	PE (Yellow-Green)	U (Red)	V (Blue)	W (Yellow)
	Socket Number	1	2	3	4

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
