30kVA Single Phase 120v 60Hz To 240v 50Hz Converter

Free Shipping

30kVA Single Phase 120v 60Hz To 240v 50Hz Converter

0 reviews • Write a review

from

$8,759.13

Ex Tax: $8,759.13

Stock: In Stock
Model: HZ-50-1130
Weight: 1.00
SKU: HZ-50-1130

Available Options

Input Voltage (Single Phase)

Output Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

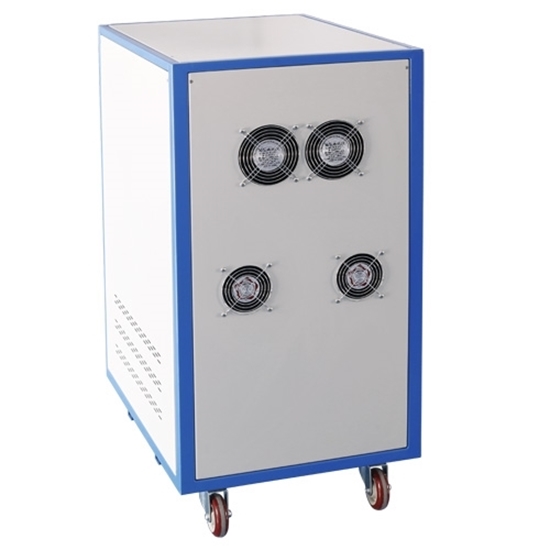

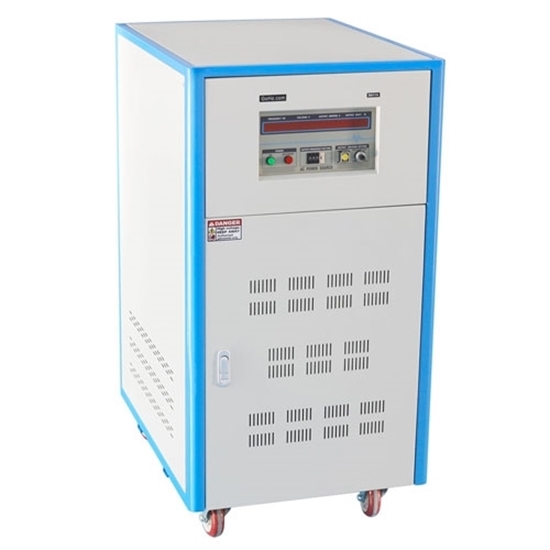

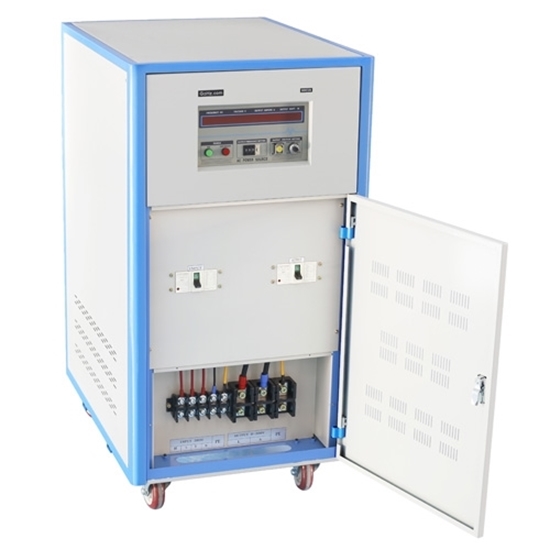

30 kVA single phase frequency converter, make your appliances compatible with international power systems, change single phase 240V 50Hz to 120V 60Hz (vice versa) in one step by inner step up & step down transformer.

Specification:

Model	HZ-50-1130
Capacity	30 kVA
Dimension	7705801140mm
Weight	270 kg
Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 250A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 125A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Tips: Maintenance method of the frequency converter

Ensure correct voltage control, conduct sequence protective action test.
Pay attention to clean thoroughly the dust in the cooling air duct and air filter.
Ensure that the balance of the output voltage during the separate operation of the frequency converter meets the standard.
Guarantee the protection and display loop of the frequency converter to have no abnormal condition.
Conduct one regular inspection of the frequency converter equipment every year.
Inspect if there is any loose screw spike, plugin and other equipment components.
Measure the waveform of the driving circuit to check if there is any distortion, if the UVW phase waveform is the sine wave.
If it is allowed, the oscilloscope can be used to measure the stability of the switching power supply output voltage.
It is required to wipe the conductor and insulator with alcohol in time, so as to ensure the cleaning degree.
