Electronic Torque Adapter, 0.1-0.5mm/ 0.2-1mm/ 0.4-2mm

0 reviews • Write a review

from

$695.56

Ex Tax: $695.56

Stock: In Stock
Model: RDDLZ-EQBH
Weight: 1.00
SKU: RDDLZ-EQBH

Available Options

Model

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

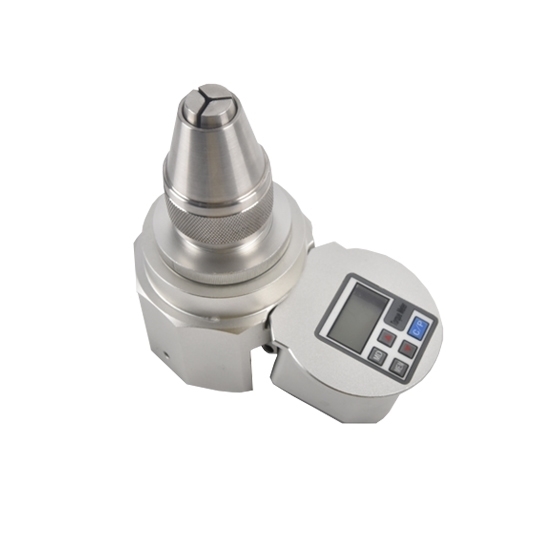

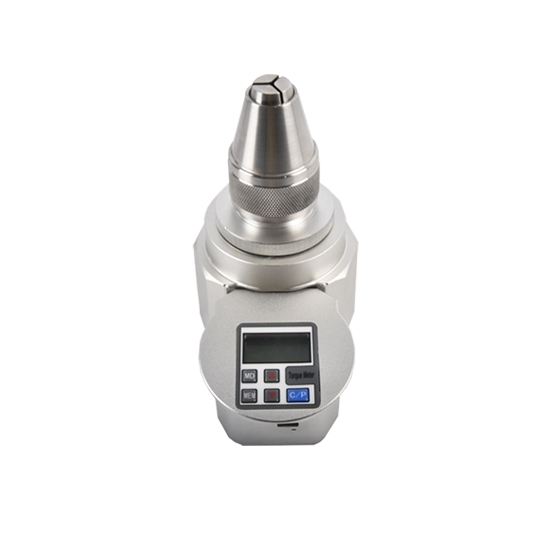

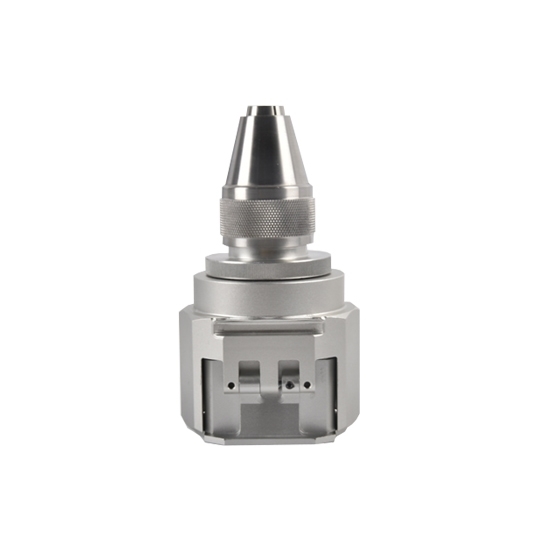

Lower cost digital torque adapter with clamping range 1-8mm, connector size 0.25 inch/ 6.35mm. It can used for various tightening and disassembly control strengths. It is suitable for automotive, bicycle, various machinery maintenance and other industries.

Specification

Model	RDDLZ-EQBH-0.5	RDDLZ-EQBH-1	RDDLZ-EQBH-2
Operating range	0.1-0.5mm	0.2-1mm	0.4-2mm
Division value	0.0001Nm	0.001Nm
Connector size	0.25 inch/ 6.35mm
Torque accuracy	±2%
Clamping range	1-8mm
Weight	0.8kg
Warranty	12 months

Product structure

Tips: How to Maintain and Repair Digital Torque Adapter?

In order to ensure the accuracy of the product, the product should be checked regularly to ensure its normal use.
1. Verification requirements: Determine the verification period according to the frequency requirements of the product.

2. Verification cycle: The verification period is generally 12 months, and the verification period of frequently used products is 6 months. The bolts and nuts fastened in important positions should be verified before each use to ensure their accuracy.

3. Verification qualification: The verification personnel shall be manufacturers or qualified measurement personnel, and the verification equipment shall be a verification instrument with a system error of less than or equal to 0.3%.

4. Don't use it as a hammer during use, try to avoid bumping and falling.

5. It is strictly forbidden to use overload, so as not to damage the sensor of the product.

6. It is strictly forbidden to disassemble the product at will. If you encounter any problems, please contact our company in time.

7. After using the product, it should be put in the packing box.
