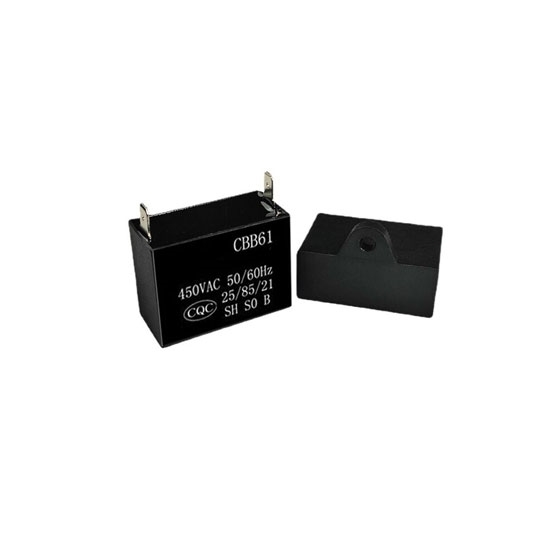

1μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$1.48

Ex Tax: $1.48

Stock: In Stock
Model: RDDLZ-FC-CBB61-01
Weight: 1.00
SKU: RDDLZ-FC-CBB61-01

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy ceiling fan capacitor online, low price, high overload capacity, 1μF capacity, voltage 450V, 250V can also be customized, suitable for all kinds of ventilation fans, pedestal fans, washing machines and other appliances.

Specification

Model: RDDLZ-FC-CBB61-01
Capacity: 1μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 36(W) x 10(L) x 20(H)mm
Certificate: CE, CQC

1 mfd Fan Capacitor Wiring Diagram

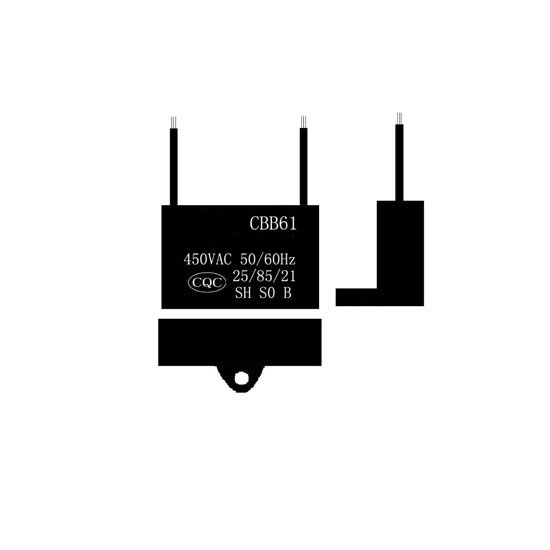

Ceiling Fan Capacitor Details

Tips: Characteristics of polarized capacitors

Polarized electrolytic capacitors are usually used in power supply circuits or medium and low frequency circuits for power filtering, decoupling, signal coupling, time constant setting and DC isolation. Its capacity range is large, generally 1~1000μF, rated working voltage range is 6.3~450V. Its disadvantages are dielectric loss, large capacity error (maximum allowable deviation is +100%, -20%), poor heat resistance, and easy to fail after long storage time.
