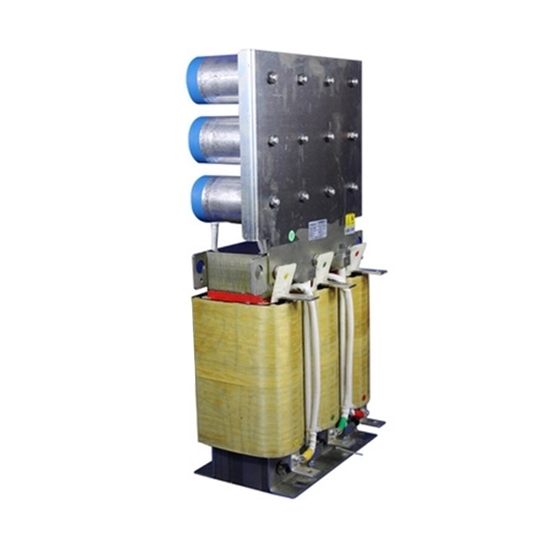

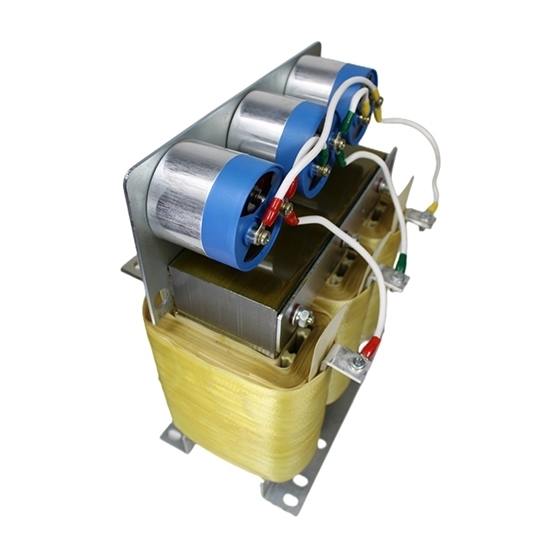

5A Sine Wave Filter, 3 Phase

0 reviews • Write a review

from

$313.23

Ex Tax: $313.23

Stock: In Stock
Model: RDDLZ-SWF-5
Weight: 1.00
SKU: RDDLZ-SWF-5

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost sine wave filter with 5A rated current and withstand voltage 3000VAC 60/s. The sine filter can filters the SPWM modulation wave into an approximately sinusoidal voltage waveform.

Specification

Model	RDDLZ-SCAR-005
Rated current	5A
Adapted power	2.2kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	7kg

Dimension

Model	L	W	H	L1	W1	A	B
RDDLZ-SCAR-005	180mm	170mm	220mm	165mm	67mm	8mm	14mm

Application

Tips: What is a sine-wave filter?

Sinus filters, as the name suggests, are used to convert the output voltage of the frequency converter into a sinusoidal voltage. Frequency converters generate high electrical interference signals on the motor cable, which not only disturb the load, but also increase the insulation load on the motor.
