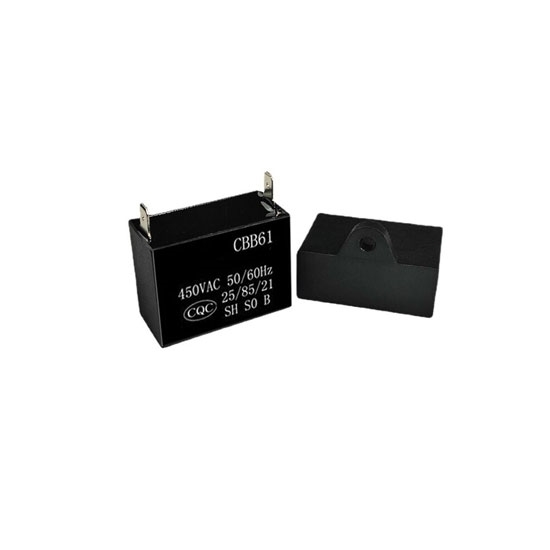

10μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$4.28

Ex Tax: $4.28

Stock: In Stock
Model: RDDLZ-FC-CBB61-100
Weight: 1.00
SKU: RDDLZ-FC-CBB61-100

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ceiling fan capacitor capacitor size 48 x 26 x 38mm, capacity value 10mfd, film type capacitor, rated voltage 450V AC, suitable for climate type 40/105/21, for running different types of ceiling fan motors.

Specification

Model: RDDLZ-FC-CBB61-100
Capacity: 10μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film

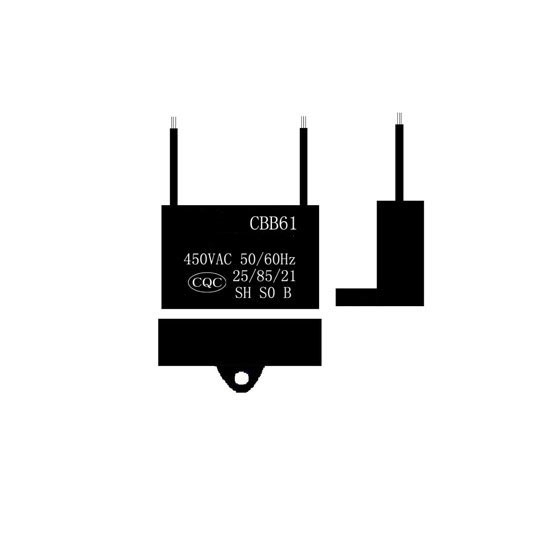

Dimension: 48(W) x 26(L) x 38(H)mm
Certificate: CE, CQC

10μF Ceiling Fan Capacitor Wiring Diagram

Ceiling Fan Capacitor Details

Tips: Are the "structures" of non-polarized and polarized capacitors the same?

In principle, if the tip discharge is not considered, any shape of capacitor is required for the application environment. Electrolytic capacitors (polarized capacitors) are usually used in round shape, and square shape is rarely used. There are many different shapes of non-polarized capacitors. For example, tube type, deformed rectangle, sheet type, square type, round type, combined square type, round type, etc. See where they are used. Of course there is also something invisible. The invisible here refers to the distribution capacity. Distribution capacity must not be neglected in high frequency and medium frequency devices.
