Two Diaphragms Coupling, 10mm To 20mm

0 reviews • Write a review

from

$146.98

Ex Tax: $146.98

Stock: In Stock
Model: RDDLZ-SC-GLM4450
Weight: 1.00
SKU: RDDLZ-SC-GLM4450

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

WIth Keyway

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

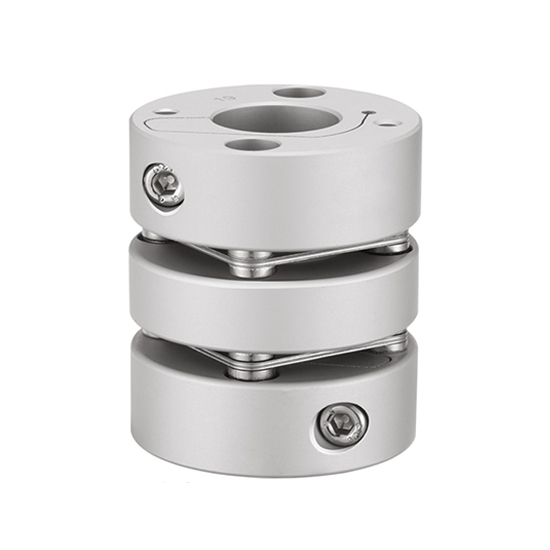

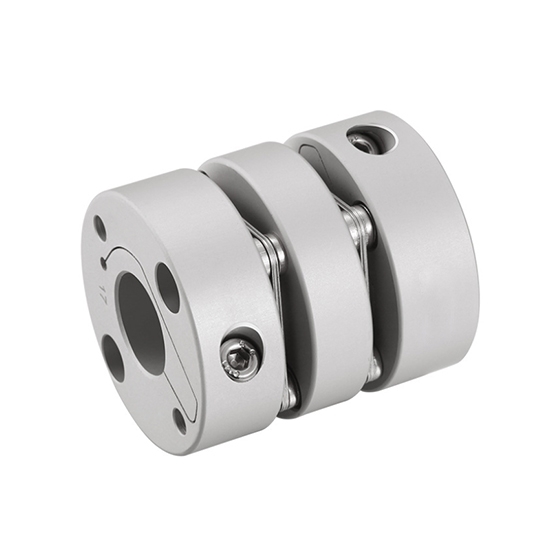

Two diaphragms coupling length 50mm, width 44mm, bore 10 to 20mm, coupling diaphragm is made of 304 stainless steel, which has strong oxidation resistance and high torsional rigidity for precise positioning.

Specification

Model	RDDLZ-SC-GLM4450
Length	50mm
Width	44mm
Bore	10mm to 20mm
Rated Torque	12 N.m
Allow Eccentricity	0.22mm
Allowable Deflection Angle	1.5∠°
Allowable Axial Deviation	±0.54
Allowable Speed	10000 RPM
Static Torsional Stiffness	9000N.m/rad
Moment of Inertia	3.8 x 10^-5
Weight	140g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Bore 10mm to 20mm Diaphragm Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size	Φd	L	LF	LP	S	φd3	F	M	Tightening Torque
10-11-12-12.7-14-15-16-17-18-19-20	44	50	14.9	11.2	4.5	22	6.5	M4	3.5 N.m

Details

Keyway

Shaft Diameter	Keyway Standard Machining Dimensions				Keyway Size
d1/d2	b		t		(bXh)
d1/d2	Width of groove	Tolerance	Depth of groove	Tolerance	(bXh)
φ6~φ7.9	2	±0.0125	1	±0.10	2x2
φ8~φ10	3	±0.0125	1.4		3x3
φ10.1~φ12	4	±0.0150	1.8		4x4
φ12.1~φ17	5		2.3		5x5
φ17.1~φ22	6		2.8		6x6
φ22.1~φ30	8	±0.0180	3.3	±0.20	8x7
φ30.1~φ38	10	±0.0180	3.3		10x8
φ38.1~φ44	12	±0.0215	3.3		12x8
φ44.1~φ50	14		3.8		14x9
φ50.1~Ф58	16		4.3		16x10
φ58.1~φ65	18		4.4		18x11

Keyway Machining Standard Drawing

Tips: Diaphragm coupling application

Diaphragm couplings are widely used in shaft transmission of various mechanical devices, such as water pumps (especially high-power, chemical pumps), fans, compressors, hydraulic machinery, petroleum machinery, printing machinery, textile machinery, chemical machinery, mining Machinery, metallurgical machinery, aviation (helicopter), naval high-speed power transmission systems, steam turbines, piston-type power mechanical transmission systems, crawler vehicles, and generator sets high-speed, high-power mechanical transmission systems, which are applied to high-speed transmission after dynamic balance shafting.
