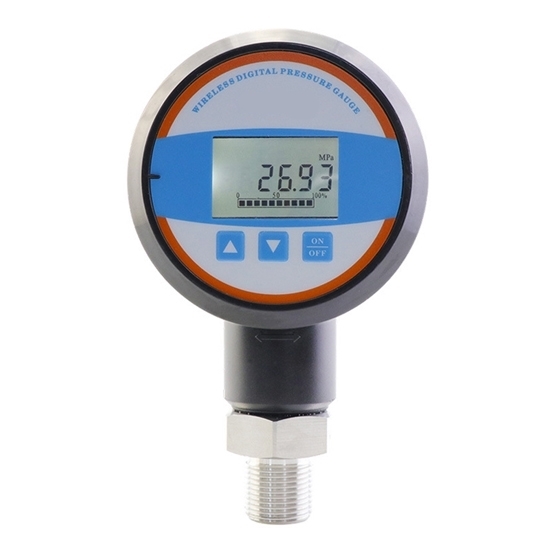

RDDLZ wireless pressure gauge is equipped with an ultra-low-power microprocessor and a high-precision sensor signal conditioning circuit. The measurement data can be obtained by logging in to the relevant website through the Internet PC or mobile terminal, and the collected data can be counted and analyzed to form reports and reports. The data curve is intuitive, accurate and efficient.

Applications

Industrial process inspection and control
pump station and water treatment system
automatic inspection system.
Unattended and dangerous areas

Specification

Model		RDDLZ-BRW800-3200
Weight		0.5kg
Measuring range (Optional)		-100kPa~6MPa
Measure medium		Air, steam, liquid (non-explosion proof area)
Power supply		3.6VDC battery
Thread of pressure connection (Optional)		M20*1.5, G1/4
Communication mode (Optional)		NB-loT	LoRaWan
Power dissipation	Dormant current	≤25uA	≤25uA
	Sampling current	≤5mA (last 1s)	≤5mA (last 400ms)
	Average communication current	≤35mA (last 2s)	≤35mA (last 2s)
	Online current	≤15mA (last 90s)	/
Communication protocol		MQTT/ LWM2M/ LoRaWan
Battery capacity		13000mAh
Accuracy (Optional)		±0.5%FS, ±1%FS
Breakdown pressure		300%FS
Overload pressure		200%FS
Operating temperature		-20~+65℃
Storage environment		Temperature: -40~+80℃ Humidity: 0~95%RH
Compensation temperature		-10~+70℃
Material		Engineering plastic + 304 stainless steel
Protection class		IP65

Dimensions (Unit: mm)

Tips: What is a wireless digital pressure gauge?

Wireless digital pressure gauge is a high-precision intelligent pressure measuring instrument powered by battery and with wireless communication function. It can be widely used in petroleum, chemical, electric power, metallurgy, pharmaceutical, food and other industrial fields. It is an ideal upgrade product for traditional pressure gauges and traditional pressure sensors. It is an ideal pressure measuring instrument in the field of industrial automation. The wireless pressure sensor generally adopts the connection and installation type of M20×1.5, and when in use, the wireless pressure sensor is powered by two high-performance, large-capacity lithium batteries, which can generally be used for more than 1.5 years, so its application is relatively wide. However, some matters need to be paid attention to in the application, which can not only prolong the life of the wireless pressure sensor, but also ensure the accuracy of the measurement results of the wireless pressure sensor.
