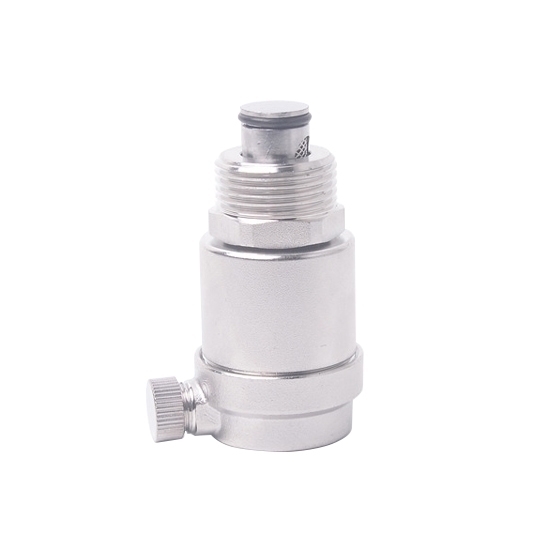

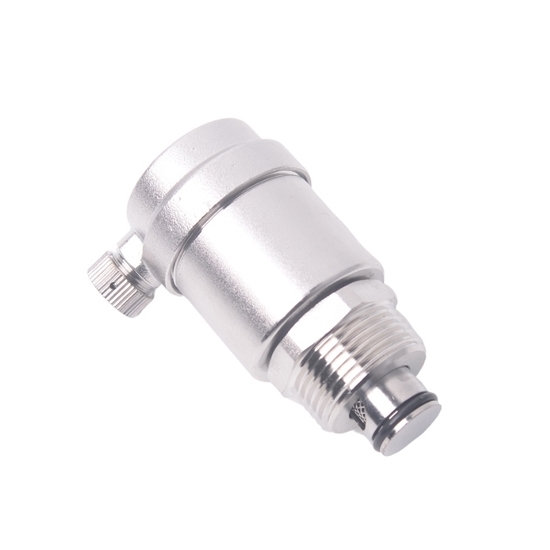

Stainless Steel Automatic Exhaust Valve, DN15/DN20/DN25

0 reviews • Write a review

from

$54.69

Ex Tax: $54.69

Stock: In Stock
Model: RDDLZ-QEV-DN15
Weight: 1.00
SKU: RDDLZ-QEV-DN15

Available Options

Short Description

Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The stainless steel automatic exhaust valve, in DN15, DN20, and DN25, works at 1.6 MPa and -15°C to 80°C. It’s ideal for water, gas, heating, and pipelines.

Specification

Nominal Diameter	DN15/DN20/DN25 (optional)
Material	Stainless Steel
Working Pressure	1.6 MPa
Connection Method	External Thread
Applicable Medium	Water, Gas
Operating Temperature	-15°C ~ 80°C

Feature

304 Material: Made of durable stainless steel 304, ensuring corrosion resistance and long service life.
External Thread Connection: Designed with an external thread connection for easy installation and compatibility with various systems.
Applicable Media: Suitable for water and gas, making it versatile for different applications.
Operating Principle: Utilizes water buoyancy to block the air outlet; automatically releases air when water level drops or pressure builds up.
Temperature Range: Operates efficiently in temperatures from -15°C to 80°C, adaptable to different environmental conditions.
Function: Installed at high points in pipelines or systems to remove accumulated air and maintain optimal pipeline performance.
Working Pressure: Designed to handle up to 1.6 MPa of pressure, making it suitable for high-pressure systems.
Port Sizes: Available in various sizes, including DN15, DN20, and DN25, to meet different pipeline requirements.
Float Material: Features a polypropylene (PP) float, known for its corrosion resistance and reliability.
Built-in Filter: Includes a filter to prevent debris from clogging the valve, ensuring consistent performance.

Dimension (unit: mm)

Applications

Tips: What industries commonly use this valve?

This valve is widely used in industries such as water treatment, HVAC (heating, ventilation, and air conditioning), chemical processing, and irrigation systems. It is particularly valuable in applications where air removal is essential for maintaining system efficiency, such as in boiler systems, cooling towers, and compressed air systems. Its ability to handle both water and gas expands its use across diverse industries.
