Note: This quick exhaust valve cannot be used for drinking water.

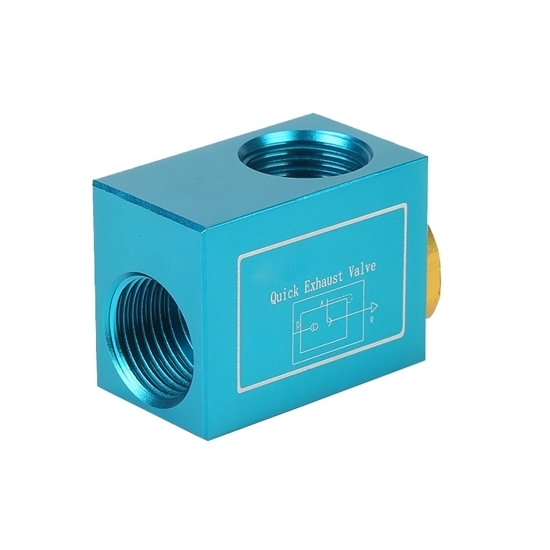

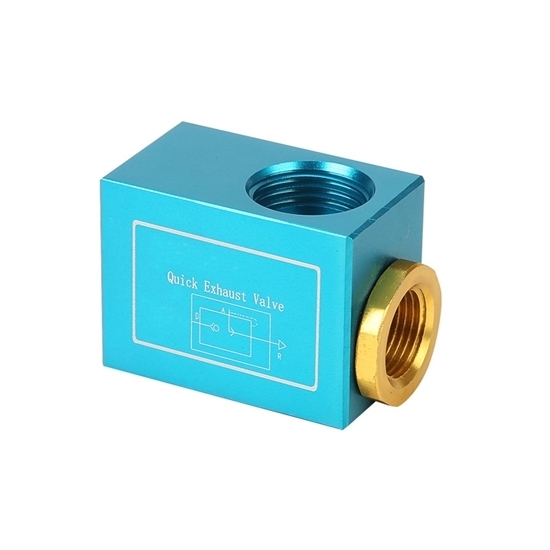

Quick exhaust valve (QEV) is commonly employed in pneumatic systems where rapid and precise actuator movements are crucial, such as in industrial automation, robotics, and various manufacturing processes. It serves to increase the speed of an actuator's return stroke by quickly exhausting the air from the cylinder, enhancing overall system efficiency.
| Model | A | B | C | D | E | F | G |
| RDDLZ-QE-01 | 4 | 48 | 14 | 28 | 13 | 36 | G1/8" |
Tips: What is a quick exhaust valve?
A quick exhaust valve is a pneumatic component designed to rapidly release compressed air from a system, enhancing the speed of cylinder retraction in pneumatic applications. Typically used in conjunction with pneumatic cylinders, these valves facilitate the quick release of exhaust air, allowing for faster retraction of the cylinder piston. The valve works by providing a direct path for the exhaust air to escape, minimizing backpressure and accelerating the cylinder's return stroke. This swift exhaust process is crucial in applications where rapid and precise movements are required, such as in manufacturing, automation, or other pneumatic systems. Quick exhaust valves contribute to increased efficiency and responsiveness in pneumatic machinery by minimizing delays associated with air evacuation from the cylinder.
