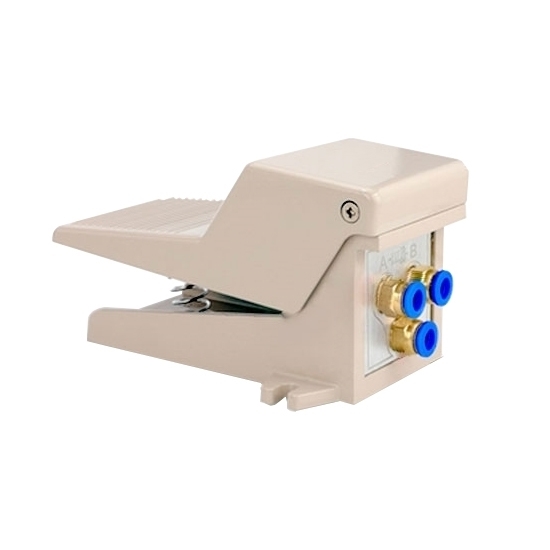

Pneumatic Foot Pedal, 5 Way 2 Position, With Pneumatic Fitting

0 reviews • Write a review

from

$28.79

Ex Tax: $28.79

Stock: In Stock
Model: RDDLZ-PFD-4F21086
Weight: 1.00
SKU: RDDLZ-PFD-4F21086

Available Options

Short Description

Pneumatic Fitting

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 position 5 way pneumatic foot operated pedal valve for sale, inlet and outlet is 1/4", pneumatic fitting optional 6mm, 8mm and 10mm, operating pressure range: 0~0.8 MPa (0~114 psi), widely used in industrial work.

Specification

Model: RDDLZ-4F210-086
Working Medium: Air
Action Mode: Foot control direct action
Port Size: PT 1/4
Pneumatic Fitting: 6mm, 8mm, 10mm
Number of Positions: 5 Way 2 position
Operating Pressure Range: 0~0.8 MPa (0~114 psi)
Pressure Resistance: 1.5 MPa (215 psi)
Working Temperature: -20~70℃
Material: Aluminum alloy
Weight: 490g

Features

Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
Bold spring, good quality and durable, not easy to rust.

5 Way 2 Position Pneumatic Foot Pedal Dimension

Pneumatic Foot Pedal Details

Tips: Why do you need a pneumatic foot switch?

In many cases, a foot switch is used because it allows the user to perform multiple tasks by operating a machine or computer "hands-free". If the user is in a call center, the footswitch can be used to answer calls so that the user can operate the computer with both hands.

Using a foot switch also ensures that the workspace is kept clean and tidy. Leaving the foot switch on the floor means more room on the table, and using a manual control or hand switch won't have the same effect.
