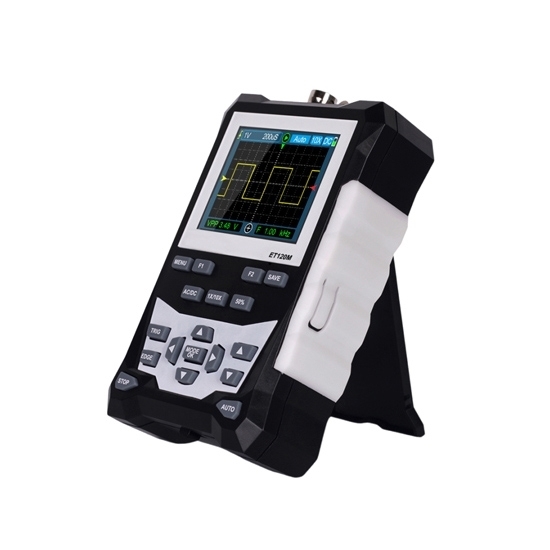

Small handheld oscilloscope is a portable tool with 1 channel, 120 MHz bandwidth digital oscilloscope, 3 waveform scanning modes, 500MSps equivalent sampling rate and 4 speed square wave signal output that ensures a more rapid capturing of instantaneous or abnormal signals for accelerating signal analysis and fault tracing.

Specifications

Dimension

Details

Tips: What is the 1 channel of oscilloscopes?

The "1 channel" of an oscilloscope refers to a single input channel that can be used to measure and display an electrical signal. Oscilloscopes are instruments designed to visualize voltage waveforms, and each channel corresponds to a separate input for measuring different signals. A 1-channel oscilloscope is the simplest type, meaning it can capture and display one signal at a time. This makes it suitable for basic measurements where only one signal is needed, such as observing a single waveform or troubleshooting a single circuit path.

With a 1-channel oscilloscope, you can measure parameters like amplitude, frequency, and signal shape. Although it lacks the ability to compare multiple signals simultaneously, it is still useful for a range of applications, including electronics testing, circuit debugging, and basic signal analysis. More advanced oscilloscopes often come with multiple channels (2, 4, or more), allowing simultaneous measurements and comparisons of multiple signals, which is especially useful for more complex systems and diagnostics.
