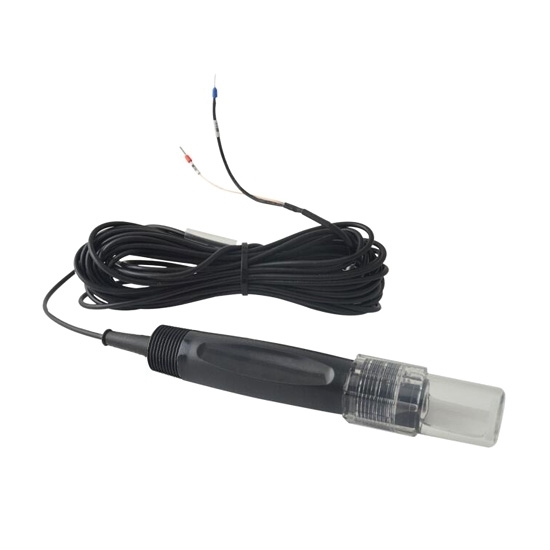

PH Electrode For Flue Gas Desulfurization

0 reviews • Write a review

from

$199.37

Ex Tax: $199.37

Stock: In Stock
Model: RDDLZ-PHELE-5012
Weight: 1.00
SKU: RDDLZ-PHELE-5012

Available Options

Short Description

Cable Length

Temperature compensation

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

PH electrode can be used for pH measurement of flue gas desulfurization (FGD), or other harsh environment, such as whitewash, seriflux, etc.

Function:

Adopt aerogel electrode, easy to maintain.

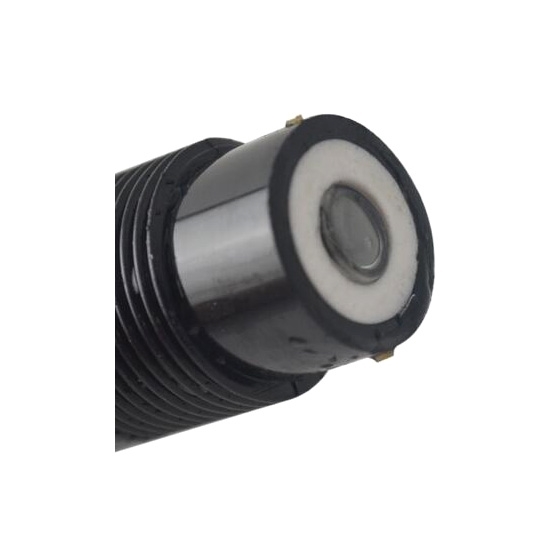

Adopt flat glass bulb, good resistance to contamination and impact.
High accuracy in high temperature or high pH value.
High-quality low-noise cable, can achieve 60m long distance signal transmission.

Specification:

Model	RDDLZ-PHETE-PH5012
Weight	1kg
Measuring range	0-14pH
Accuracy	0.02pH
Temperature range	0-60℃ (32-140℉)
Temperature compensation *	Internal temperature sensor (NTC 10K)
Zero position	7±0.3pH
Compressive strength	0.6MPa
Slope	≥96%
Installation size	3/4NPT in both ends
Shell material	PPS/PC
Connection	Direct lead
Cable length *	5m/10m/15m, or other length less than 50m (need customization)
Service life	6 months

PH electrod installation methods:

1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation

Tips: Categories of pH electrode
Currently, there are three kinds of pH electrode: liquid electrode, gel electrode and solid electrode.

Liquid pH electrode
Liquid electrode is a filling-type liquid electrode, it’s the most typical, the most outstanding quality and the most widely applied electrode in the history of pH electrodes. It’s suitable for measurement of various industrial processes.
Gel pH electrode
Gel electrode is an improved liquid electrode. Such an electrode requires few maintenance and is suitable for on-line measurement with serious requirements. It can still work for a long time after many times of CIP (Cleaning In Place) and SIP (steam sterilization).
Solid pH electrode
Solid electrodes are widely used in chemical industry. Applying new solid polymer reference electrolyte, its service life prolongs while maintaining accurate pH measurement, moreover, it can maintain good performance even in the worst industrial environment.
