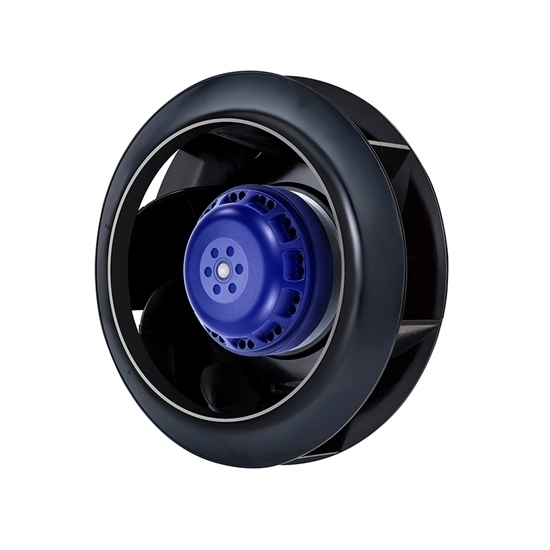

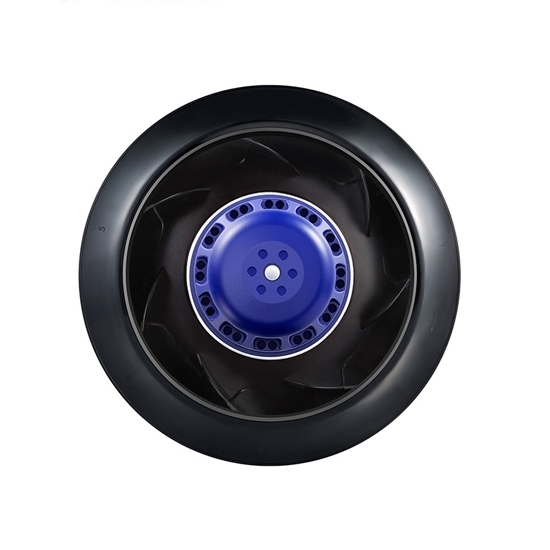

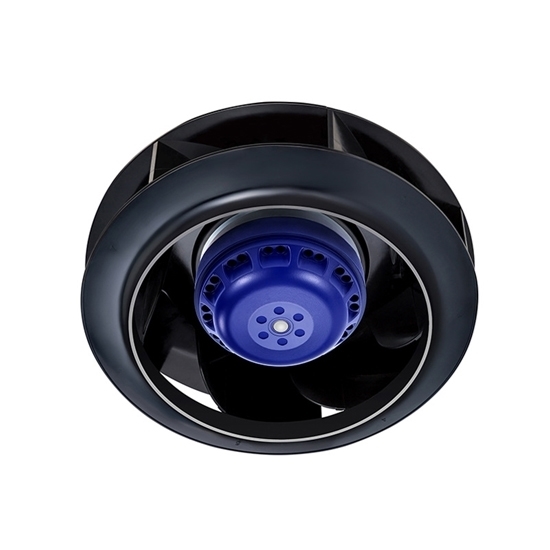

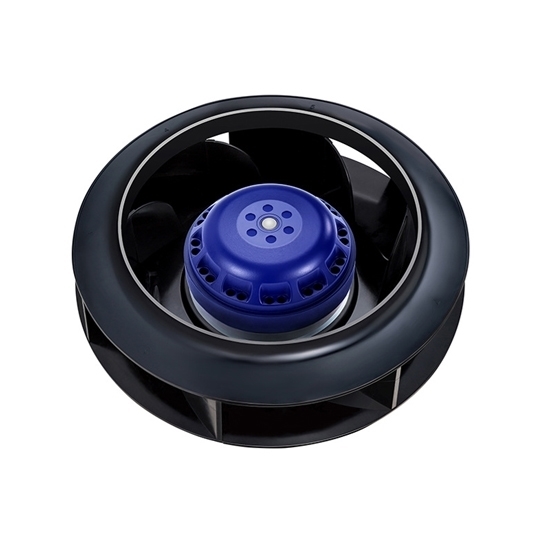

EC Backward Curved Centrifugal Fan, 220mm

0 reviews • Write a review

from

$387.39

Ex Tax: $387.39

Stock: In Stock
Model: RDDLZ-BCCF-EC220
Weight: 1.00
SKU: RDDLZ-BCCF-EC220

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

EC (electronically commutated) backward curved centrifugal fan is widely used in HVAC systems and industrial applications. This backward inclined centrifugal blower combines the efficiency of a 220mm backward curved impeller design with the advantages of EC motor technology, which meets modern ventilation and cooling needs, contributing to energy savings and improved system performance.

Specification

Model	RDDLZ-BC-B220C-EC-01
Operating Voltage	115V AC
Shaft Power	168W
Motor Power	168W
Impeller Diameter	220mm
Speed	3250rpm
Air Volume	1140m³/h (670 cfm)
Speed Regulation	0~10VDC / PWM
Signal Output	FG (Frequency Generator)
Air Pressure	950PA
Impeller Material	Plastic
Casing Material	SPCC+S45C
Rotation Direction	Clockwise CW (from the rotor end)
Number of Impellers	7
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Operating Humidity	5%~90% RH
Average Life	50,000 Hours(L10)
Motor Protection	Thermal Protection, Soft Start Protection, Stall Protection, Undervoltage Protection, Overvoltage Protection, Overcurrent Protection
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS
Dimensions (LWH)	220220101.8mm
Weight	4.5kg

Dimension (Unit: mm)

Performance Curve

Detail

Tips: Backward and forward curved centrifugal fan applications

Backward and forward curved centrifugal fans are crucial in HVAC systems, industrial processes, and air pollution control due to their distinct characteristics.

Backward inclined centrifugal fans are known for their high efficiency and low noise levels, making them ideal for clean air applications such as ventilation, air conditioning, and cooling systems in industrial settings. They can handle high pressures and are often used in situations where energy efficiency is paramount, like in clean rooms, data centers, and large commercial buildings.

Forward curved centrifugal fans are suited for low-pressure, high-volume applications. Their compact design makes them ideal for residential HVAC systems, small exhaust systems, and air handling units. They are effective in situations where a continuous flow of air is required, such as in heating systems, kitchen exhausts, and automotive ventilation.

Both types are essential in maintaining air quality, ensuring proper ventilation, and supporting various industrial processes by moving air efficiently.
