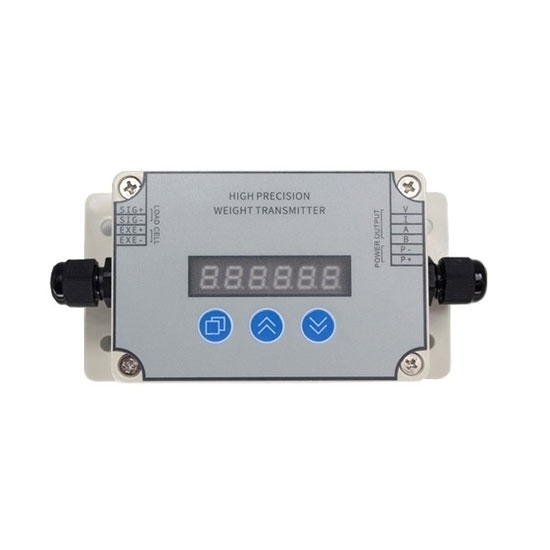

After purchasing S beam load cell, you can choose a special digital panel meter to obtain readings directly, or choose a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

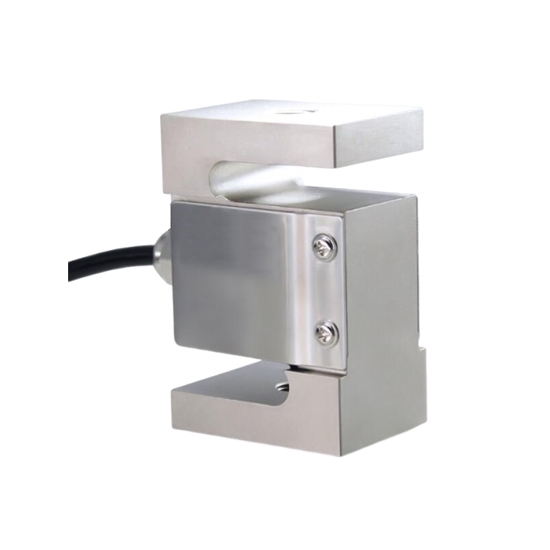

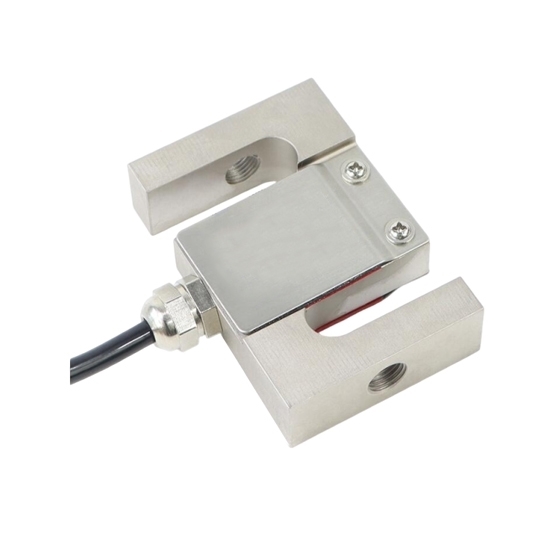

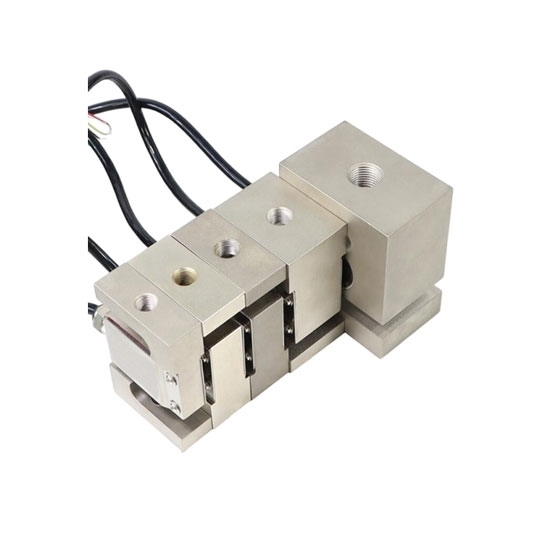

S beam load cell measuring both tension and compression. Available in 50kg to 5-ton ranges with analog, digital, and RS485 outputs. Offers 2mV/V sensitivity, operates on 5-15V, perfect for hopper scales, material weighing, spring tension tests, and pressure monitoring.

Specification

Feature

• Integrated Tension and Compression Design: The S beam load cell measures both pulling and pushing forces with high precision.
• High Accuracy: This load cell sensor achieves a precision of ±0.03% F.S., ensuring stable and reliable measurements.
• Customizable Capacity and Size: Available in a wide range of capacities from 50kg to 5000kg, with customizable dimensions for different load cell applications.
• Compact and Durable Structure: Designed with a tight and solid construction, the load cell sensor provides long-term stability and high overall accuracy.
• Easy Installation and High Sensitivity: The S beam load cell has a simple mounting process with excellent response sensitivity, ensuring precise force measurement.
• Versatile Mounting Options: Compatible with eye bolts, hooks, and joint bearings, making it easy to integrate the load cell into different systems.
• High-Strength 42CrMo Alloy Steel: The load cell sensor is made from superior 42CrMo alloy steel, offering high strength, excellent toughness, and resistance to wear and fatigue.
• Corrosion and High-Temperature Resistant: Designed to withstand rust, high temperatures, and abrasion, ensuring long service life.
• Hexagonal Waterproof Connector: Prevents wire breakage due to pulling forces, enhances corrosion resistance, and ensures stable signal transmission with strong anti-interference capabilities.
• Standard Mounting Holes: The S beam load cell provides convenient installation and output symmetry, ensuring precise tension and compression measurements.

Dimension (unit: mm)

Wiring Method

Application

This S beam load cell is suitable for hopper scale material weighing pendant, spring tension test bench, pressure monitoring test bench.

Tips: What is an S Beam Load Cell and how does it work?

An S beam load cell is a strain gauge-based sensor designed to measure both tension and compression forces. It works by converting mechanical force into an electrical signal through strain gauges bonded to the load cell's structure. When a force is applied, the strain gauges detect minute deformations and generate a proportional electrical output, which is then processed to determine the exact force being exerted. The S-shaped design provides high accuracy, stability, and versatility, making it suitable for applications such as industrial weighing, material testing, and force measurement systems.
