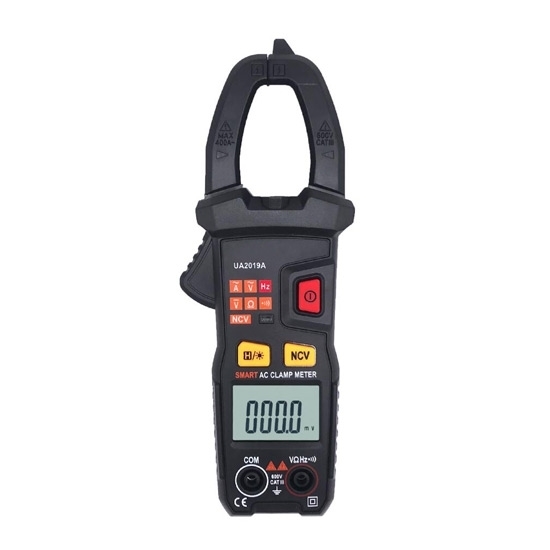

Digital Clamp Meter, AC Current 400A, NCV And Automatic Measuring

0 reviews • Write a review

from

$83.89

Ex Tax: $83.89

Stock: In Stock
Model: RDDLZ-CLAM-2019A
Weight: 1.00
SKU: RDDLZ-CLAM-2019A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tips: How to use a digital clamp meter to measure AC/DC voltage?
It is very important to note that there is the risk of electric shock.
When measuring high voltage, extra care should be taken to avoid electrical shock. Do not attempt to use this clamp meter on a voltage higher than DC/AC 600V rms.
1. Press the measurement function selection key to the DC or AC voltage measurement.
2. Connect the black lead to the COM probe socket and the red lead to the INPUT probe socket.
3. The measured value is read from the LCD. The polarity display will indicate the polarity of the terminals to which the red test is connnected.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Basics	Model	RDDLZ-UA2019A
	Weight	0.4kg
	Size (LWH)	1846632.5mm
	Display	4 digit LCD display
	Maximum display value	5999
	Power supply	DC 4.5V, 3 AAA batteries
	Maximum jaw opening size	25mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)

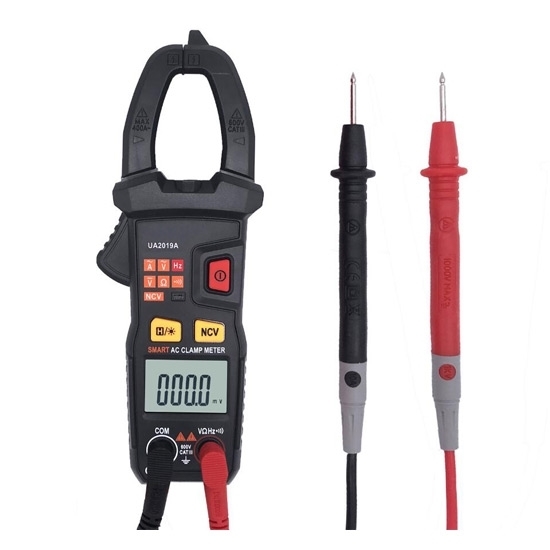

	Accessories	A pair of test probes, a user manual, 3 AAA batteries
Functions	Item	Range	Accuracy
	AC current	400A	±(2.5%+8 digits)
	DC voltage	600V	±(1.0%+5 digits)
	AC voltage	600V	±(1.2%+5 digits)
	Resistance	10MΩ	±(1.2%+3 digits)
	Frequency	1000kHz	±(0.3%+5 digits)
Special functions	NCV	Non-contact voltage test, with buzzer and indicator
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Automatic measuring after press the function key
	Back light	Back light for LCD display
	Inspection light	Inspection light for clamp operation

RDDLZ
