Ag/ AgCl Reference Electrode

0 reviews • Write a review

from

$104.69

Ex Tax: $104.69

Stock: In Stock
Model: RDDLZ-RE-218
Weight: 1.00
SKU: RDDLZ-RE-218

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

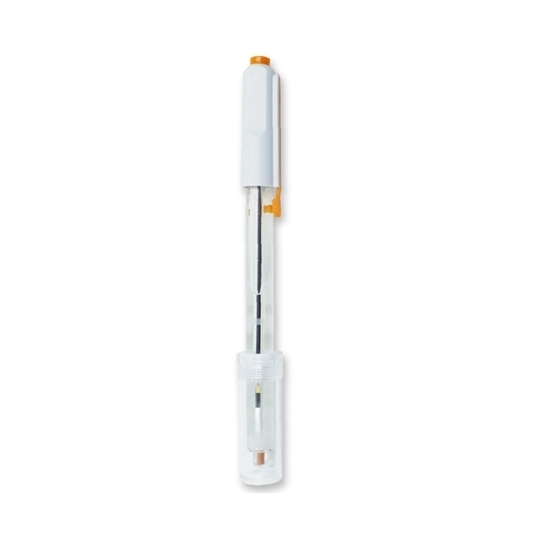

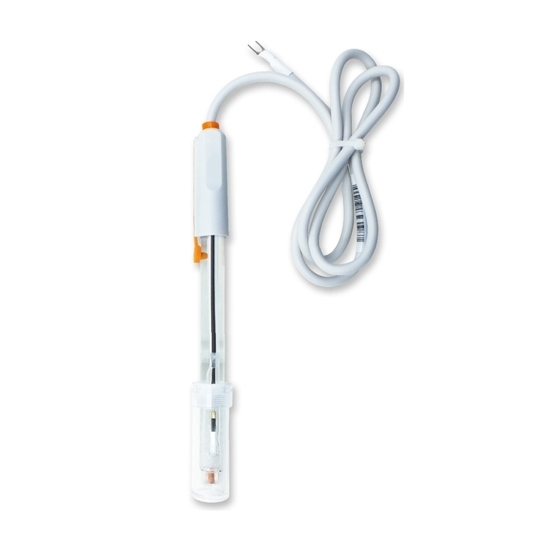

RDDLZ silver/silver chloride electrode consists of a silver wire coated with a layer of silver chloride, achieved through electrochemical methods. The Ag/AgCl reference electrode is known for its low potential drift and is commonly used in various electrochemical applications, including pH measurements and corrosion studies.

Specification

Model	RDDLZ-218
Electrode Type	Ag/ AgCl Reference Electrode
Reference Type	Silver/Silver Chloride Single Salt Bridge Type
Salt Bridge Material	Ceramic Sand Core
Filling Liquid	Saturated KCl
Shell Material	Glass
Temperature Range	5℃~55℃
Dimension	φ12*120mm
Connector	U-Shaped Fork Piece

Dimension

Detail

Application

Tips: What is an Ag/ AgCl reference electrode?

An Ag/AgCl reference electrode is a type of electrochemical reference electrode commonly used in various scientific and industrial applications. It consists of a silver (Ag) wire coated with silver chloride (AgCl), and it is immersed in a potassium chloride (KCl) electrolyte solution. The electrode provides a stable and well-defined electrochemical potential, serving as a reference point for measuring the voltage in electrochemical cells and experiments. The Ag/AgCl reference electrode is particularly popular in applications such as electrochemical sensors, corrosion studies, and analytical chemistry. Its stable and reproducible potential, along with its compatibility with aqueous environments, makes it an essential tool for accurate and reliable measurements in electrochemical experiments. The silver/ silver chloride reference electrode is known for its low impedance and minimal drift over time, contributing to its widespread use in various scientific disciplines.
