Saturated Calomel Reference Electrode

0 reviews • Write a review

from

$100.89

Ex Tax: $100.89

Stock: In Stock
Model: RDDLZ-RE-232-01
Weight: 1.00
SKU: RDDLZ-RE-232-01

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

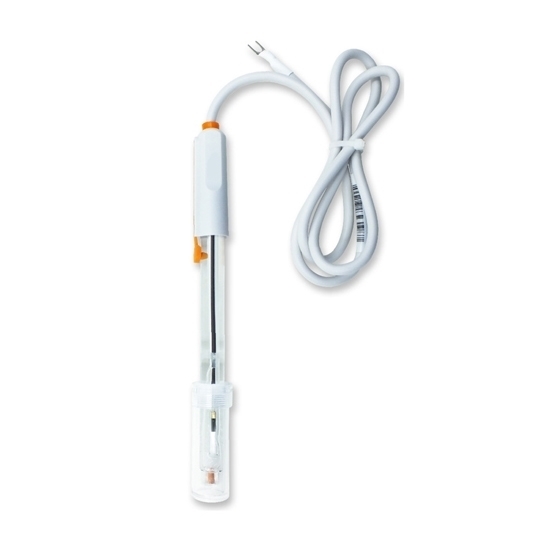

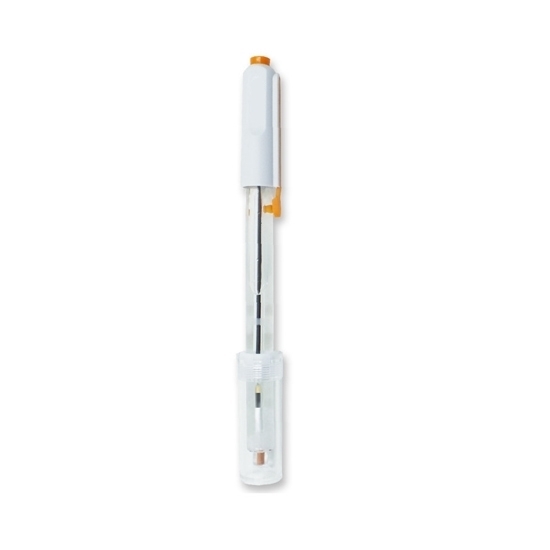

SCE saturated calomel electrode has a well-defined and reproducible potential, making it an ideal reference electrode for many electrochemical applications, including pH measurements and corrosion studies. Its stability, low maintenance, and relatively wide potential range make it a standard in electrochemical research, providing a reliable reference for comparison in various experimental setups.

Specification

Model	RDDLZ-232-01
Electrode Type	Saturated Calomel (Hg/ Hg₂Cl₂) Reference Electrode
Reference Type	Saturated Calomel Single Salt Bridge Type
Salt Bridge Material	Ceramic Sand Core
Filling Liquid	Saturated KCl
Shell Material	Glass
Temperature Range	5℃~55℃
Dimension	φ12*120mm
Connector	U-Shaped Fork Piece

Dimension

Detail

Application

Tips: Can saturated calomel reference electrodes be used in non-aqueous solutions?

Saturated calomel reference electrodes (SCEs) are primarily designed for use in aqueous solutions. The internal filling solution of SCEs typically consists of saturated potassium chloride (KCl) in water, which allows for stable and reproducible potential measurements in aqueous electrolytes. However, SCEs are not suitable for non-aqueous solutions due to the potential for changes in the reference electrode's performance.

In non-aqueous environments, the water-based filling solution may evaporate or be incompatible with the solvent, leading to unreliable readings and potential damage to the electrode. Alternative reference electrodes, such as silver/silver chloride electrodes with appropriate filling solutions, are often preferred for non-aqueous systems to ensure accurate and consistent potential measurements. Choosing a reference electrode tailored to the specific solvent and electrolyte system is crucial for reliable electrochemical measurements in non-aqueous solutions.
