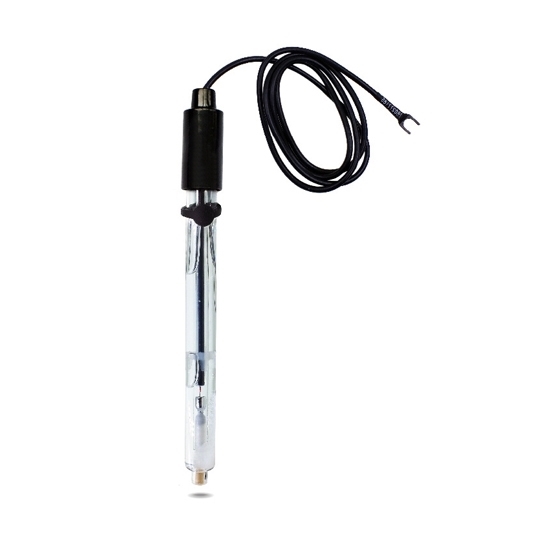

Calomel Reference Electrode

0 reviews • Write a review

from

$100.89

Ex Tax: $100.89

Stock: In Stock
Model: RDDLZ-RE-6802-01
Weight: 1.00
SKU: RDDLZ-RE-6802-01

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Calomel reference electrodes are stable and have well-defined potential, making them suitable for accurate and reproducible measurements in various electrochemical applications, such as pH determination and cell potential measurements.

Specification

Model	RDDLZ-6802-01
Electrode Type	Calomel (Hg/ Hg₂Cl₂) Reference Electrode
Reference Type	Calomel Single Salt Bridge Type
Salt Bridge Material	Ceramic Sand Core
Filling Liquid	3.8mol/L KCl
Shell Material	Glass
Temperature Range	5℃~55℃
Dimension	φ12*120mm
Connector	U-Shaped Fork Piece

Dimension

Application

Tips: Difference between saturated calomel electrode (SCE) and a silver/silver chloride electrode

The saturated calomel electrode (SCE) and the silver/silver chloride electrode (Ag/AgCl) are both reference electrodes used in electrochemical measurements. The SCE consists of mercury, mercurous chloride (calomel), and a saturated potassium chloride solution. It provides a stable and reproducible reference potential, commonly used in chloride-containing electrolytes. However, SCE has some drawbacks, such as toxicity and the potential for mercury contamination.

On the other hand, the Ag/AgCl electrode consists of a silver wire coated with silver chloride. It offers a non-toxic alternative with a stable potential, suitable for a wider range of applications. The Ag/AgCl electrode is especially useful in biological and environmental studies. Unlike the SCE, it avoids the environmental and health concerns associated with mercury. Both electrodes operate on the principle of a half-cell reaction involving chloride ions, but their composition and applications differ, allowing researchers to choose the reference electrode that best suits their experimental conditions.
