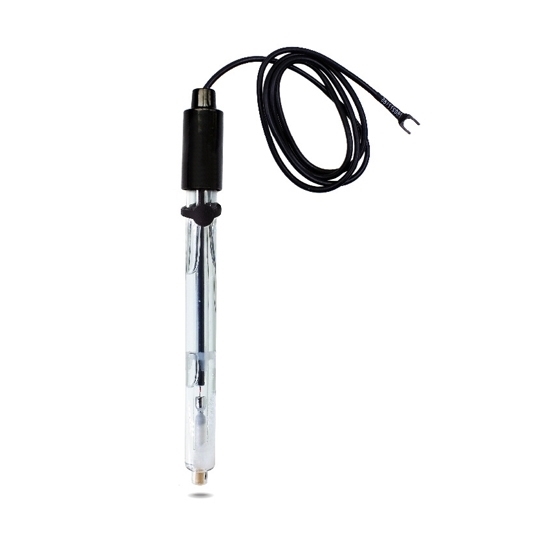

Calomel Electrode, Hg/ Hg2Cl2 Electrode

0 reviews • Write a review

from

$100.89

Ex Tax: $100.89

Stock: In Stock
Model: RDDLZ-RE-6802
Weight: 1.00
SKU: RDDLZ-RE-6802

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Calomel (Hg/ Hg2Cl2) reference electrodes have a stable and well-defined potential, making them suitable for precise measurements. They exhibit low impedance and are insensitive to light, making them advantageous for various electrochemical applications.

Specification

Model	RDDLZ-6802
Electrode Type	Calomel (Hg/ Hg₂Cl₂) Reference Electrode
Reference Type	Calomel Single Salt Bridge Type
Salt Bridge Material	Ceramic Sand Core
Filling Liquid	0.1mol/L KCl
Shell Material	Glass
Temperature Range	5℃~55℃
Dimension	φ12*120mm
Connector	U-Shaped Fork Piece

Dimension

Application

Tips: What are the types of reference electrodes?

Reference electrodes are crucial in electrochemical measurements, providing a stable potential against which the working electrode potential is measured. Common types include the Standard Hydrogen Electrode (SHE), offering a precise potential but impractical due to handling difficulties. The Ag/AgCl electrode is widely used in aqueous solutions, providing stability and ease of use. Another variant is the saturated calomel electrode (SCE), featuring a mercury-based redox system. Non-aqueous systems often employ the silver/silver ion electrode. Pseudo-reference electrodes, like the ferrocene/ferrocenium (Fc/Fc+) couple, offer advantages in organic solvents. Solid-state reference electrodes, such as those based on ion-conductive ceramics, present alternatives with enhanced durability. Choosing the appropriate reference electrode depends on the specific electrochemical system, considering factors like solvent, potential range, and experimental conditions.
