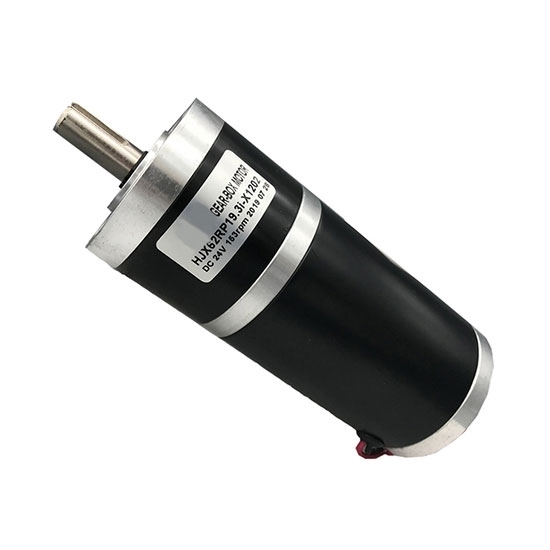

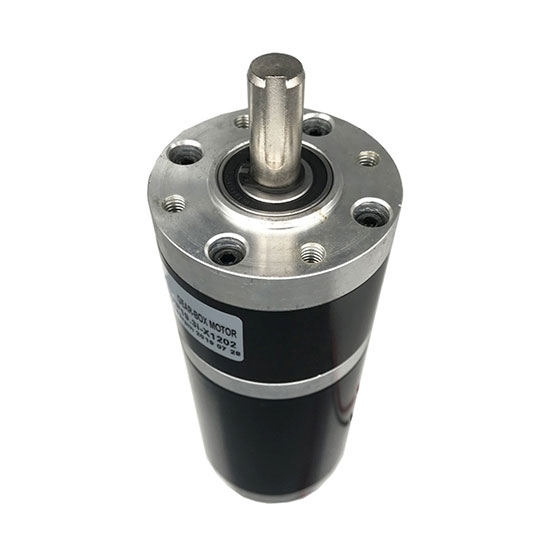

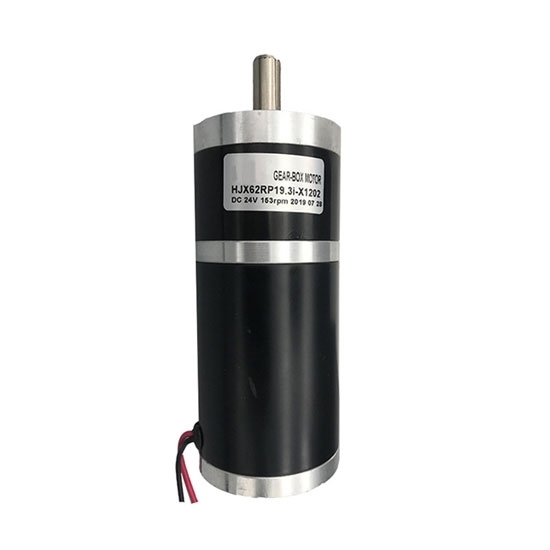

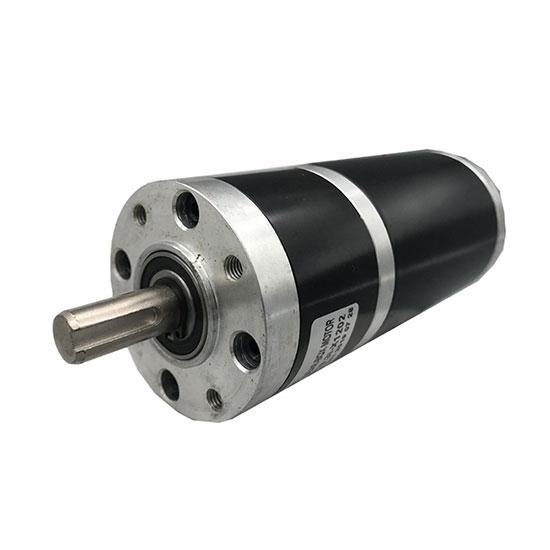

Brushed DC Motor With Gearbox, 3200rpm, 12V/24V, 62mm

0 reviews • Write a review

from

$257.89

Ex Tax: $257.89

Stock: In Stock
Model: RDDLZ-BDM-3200R62
Weight: 1.00
SKU: RDDLZ-BDM-3200R62

Available Options

Gear Ratio

Voltage (DC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Details

Tips: What is the brushed DC motor?

Brushed DC gear motor is a built-in brush device. The fixed main pole and brush are installed on the stator of the BDC motor, and the armature winding and commutator are installed on the rotor. The electric energy from the DC power supply enters the armature winding through the brush and commutator, generating armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate electromagnetic torque, which makes the motor rotate and drive the load. BDC motor is the basis of all motors, it has the characteristics of fast start, timely braking, relatively simple control circuit and so on.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Model			RDDLZ-62RP-ZY5298R8
Working Temperature (Motor & Gearbox)			-30 ~ 150°C
DC Motor Technical Parameter	Rated Voltage		12V DC									24V DC
	No Load	Speed	4000rpm									4000rpm
		Current	0.95A									0.50A
	At Max Efficiency	Speed	3200rpm									3200rpm
		Current	6.8A									3.400A
		Torque	245.1mN·m									254.9mN·m
			2500g·cm									2600g·cm
		Power	66W									68W
	Stall	Torque	882.4mN·m									931.4mN·m
			9000g·cm									9500g·cm
		Current	23.7A									12.0A
Gearbox Technical Parameter	Gear Ratio		1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/51	1/71	1/100	1/139	1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/51	1/71	1/100	1/139
	Gearbox Diameter (mm)		62									62
	Gearbox Length (mm)		37.8		51			64.4				37.8		51			64.4
	Rated Torque (kg·cm)		8.3	11.7	27.4	38.4	54.0	89.3	124.3	175.0	243.3	8.7	12.2	28.5	39.9	56.2	92.8	129.2	182.0	253.0
	Rated Speed (rpm)		865	615.4	233.6	16637	118.5	62.7	45.1	32.0	23.0	865	515.4	233.6	166.7	118.5	62.7	45.1	32.0	23.0
	Stall Torque (kg·cm)		37.5	52.7	123.3	172.8	243.0	401.6	559.1	787.5	800.0	39.0	54.8	128.2	179.7	252.7	417.7	581.5	800.0	800.0
