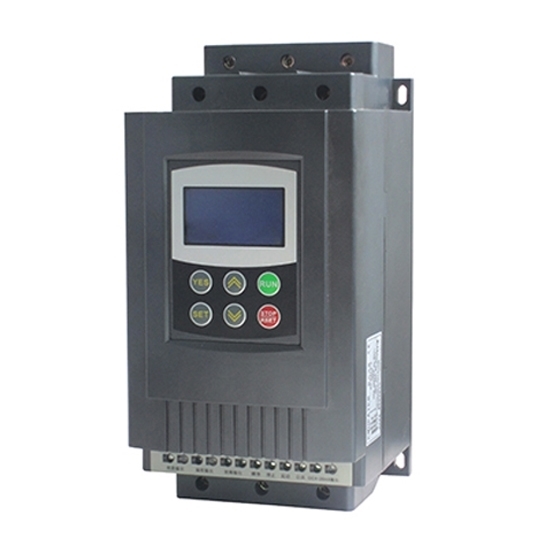

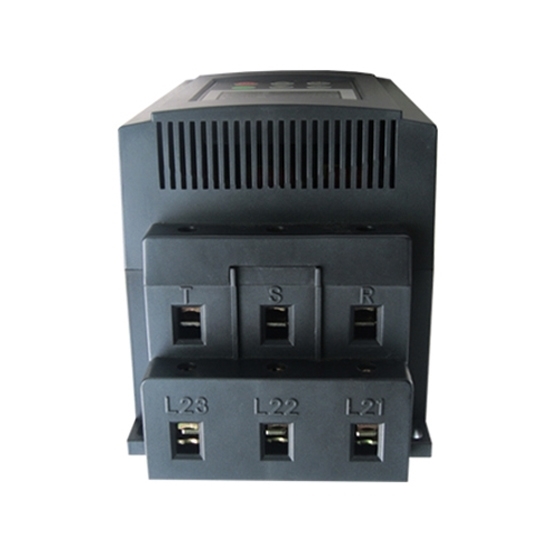

75 Hp (55 KW) Soft Starter, 110 A, 3ph 220v/380v/480v

0 reviews • Write a review

from

$579.16

Ex Tax: $579.16

Stock: In Stock
Model: GS-055
Weight: 1.00
SKU: GS-055

Available Options

Communication Interface

Input Voltage (Three Phase) ±15%

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

75 hp motor soft starter, 55 kW three phase 220v, 380v, 480v, 690v for choice.

Model			GS2-055 (220v, 240v), GS3-055 (380v, 400v, 415v), GS4-055 (460v, 480v), GS6-055 (575v, 690v).
Capacity			75 hp (55 kw)
Current			110 amps at 380v/480v, 230 amps at 220v, 70 amps at 690v
Weight			5 kgs
Dimension			270146160 mm
Input	Voltage		Three-phase 240v, 440v, 480v, 660v AC
	Frequency		50Hz/ 60Hz
Adaptive Motor			Squirrel-cage three-phase asynchronous motor
Starting Times			It is recommended not to exceed 20 times per hour.
485 Communication			DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode			Operation panel control. Operation panel + external control. External control. External control + COM control. Operation panel + external + COM control. Operation panel + COM control. COM control. No start or stop operation.
Start Mode			Current-limiting to start. Voltage ramp to start. Torque control + current-limiting to start. Torque control + voltage ramp to start. Current ramp to start. Voltage current-limiting double closed-loop start.
Stop Mode			Soft stop. Free stop.
Protective Function			Open loop protection for external instantaneous stop terminals. Over-heat protection for soft starter. Protection for too long starting time. Input open phase protection. Output open phase protection. Unbalanced three-phase protection. Starting over current protection. Running overload protection. Under voltage protection for power voltage. Overvoltage protection for power voltage. Protection for fault parameter setting of the soft starter. Load short circuit protection. Auto restart or incorrect wiring protection. Incorrect wiring protection of external control stop terminals.
Ambient		Place to be used	Indoor location with good ventilation free from corrosive gas and conductive dust.
		Altitude	Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
		Temperature	-30 +55 ^oC
		Humidity	90%RH without dew condensation.
		Vibration	<0.5G
Structure		Enclosure	IP 20
		Cooling	Natural wind cooling.

Details

Soft starter starting fault and its handling method part 1

When the user using the soft starter, the display screen has no display or there is messy code and the soft starter does not work. The causes for the malfunction may be:
In the use process, the vibrations of the soft starter caused by the external components make the internal connection of the soft starter loose. (Open the soft starter cover to re-insert the screen connection.)
Soft starter control board failure. (Connect with the manufacturers to replace the control panel.)
When the soft starter is in the starting load, there is overtime starting phenomenon. The soft starter stops working and the motor is free to stop. The causes for the malfunction are:
Parameter settings are unreasonable. (Reset the parameters, appropriately rise the starting voltage and appropriately lengthen the time.)
Start at full load. (Minimize the load when starting.)
In the starting process, if there is superheat malfunction, the light is on, and the soft starter to stop working:
Frequent start results in excess temperature, causes soft starter overheating protection action. (The number of starts of the soft starter shall be controlled at no more than 6 times per hour, especially pay attention to the heavy load.)
During the starting process, the protective element is actuated so that the contactor cannot be bypassed and the soft starter is operated for a long time, causing a protective action. (Check the peripheral circuit.)
The heavy load and the over-length starting time cause overheating protection. (When starting, reduce the load as much as possible.)
Soft starter parameter setting is unreasonable. Time is too long, and the starting voltage is too low. (Increase the starting voltage.)
The soft starter's cooling fan is damaged and does not work properly. (Replace the fan.)
In the use process of the users, there are phenomena that the starting is completed and the bypass contactor does not have pull-in phenomena. The causes for the malfunction may be:
In the starting process, the protection device is malfunctioning due to the setting. (The protective device can be reset.)
In the debugging, the soft starter parameter settings are unreasonable. (Mainly for the soft starter below 75hp, reset the parameters of the soft starter.)
Poor control line contact. (Check control line.)
