70A 4-12S Electronic Speed Controller (ESC) For Single BLDC Motor

0 reviews • Write a review

from

$319.12

Ex Tax: $319.12

Stock: In Stock
Model: RDDLZ-ESC-70-412S
Weight: 1.00
SKU: RDDLZ-ESC-70-412S

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

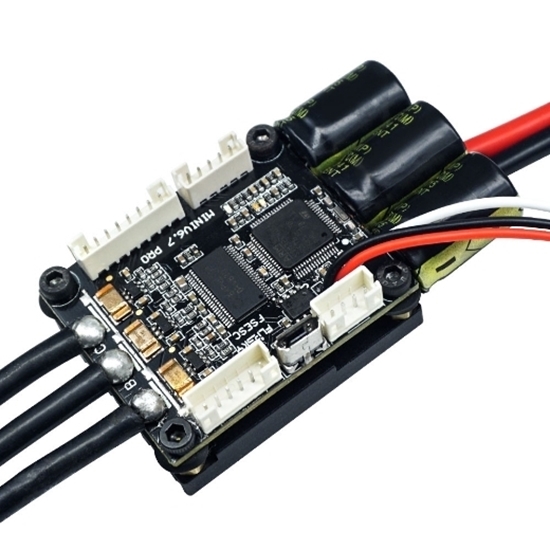

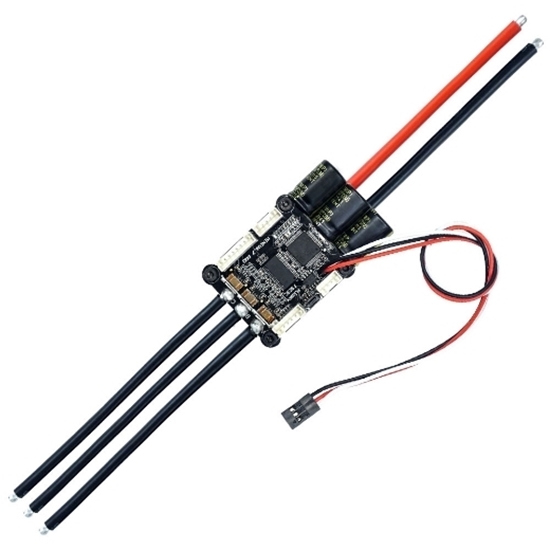

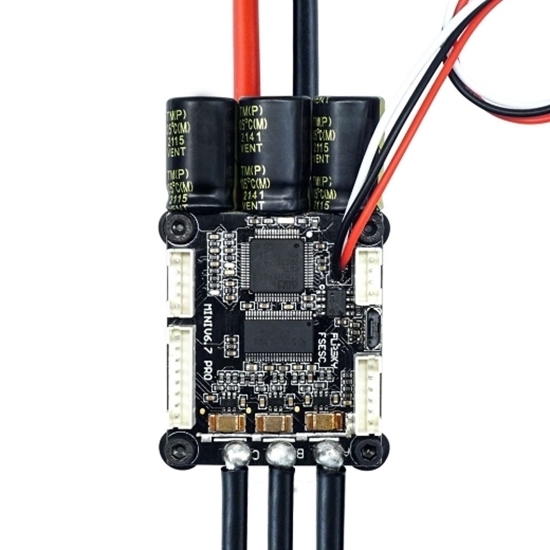

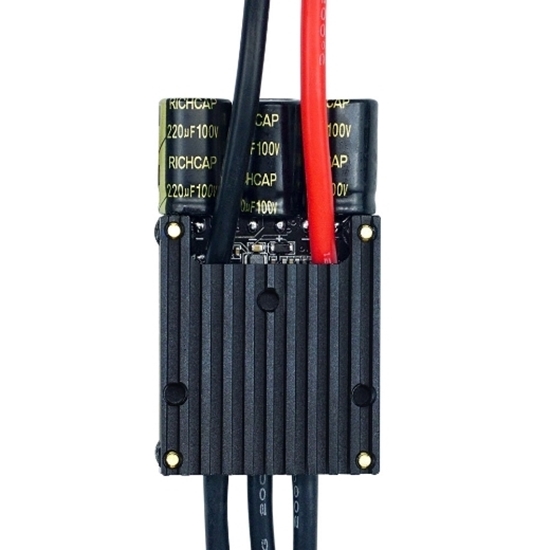

Reasonable price 70 amp electronic speed controller for sale online. A bldc electronic speed controller with safe voltage 14V-60V (4-12S), which can adjust the speed of the motor according to the control signal, is mainly used for the robot, RC cars, DUY off-road vehicles, electric cars and bicycles.

Specifications

Model: RDDLZ-VH-M67PS-N-070
Voltage: 14V-60V (Cells: 4-13S, safe for 4S to 12S, voltage spikes may not exceed 60V)
Continuous Current: 70A
Instantaneous Current: 200A
Size: 67mmx39mmx18.7mm
Weight: 130g
EPRM: 150000
Motor Cable: 12 AWG
Power Cable: 12 AWG
Regenerative capacity: Yes
Programmable: Yes
Communication Method: PPM, ADC, NRF, UART
Communication Ports: USB, CAN, UART, SPI, IC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Control Mode: Current, duty cycle, speed and position control modes are supported.

Dimension (Unit: mm)

Wiring diagram

Tips: 2 Types of electronic speed controllers

Depending on the specific requirements, there are two types of electronic speed controllers that you can get exactly in the RC Model Shop, such as brush ESCs and brushless electronic speed controllers.

Brushed ESC: The brushed ESC is the first type of electronic speed controller and it has been around for several years. It is very inexpensive and can be used for all kinds of RTR electric RC cars.
Brushless ESC: Brushless ESC is the advancement of modern technology when it comes to electronic speed control. It is also more costly. Connected to a brushless motor, it has more power and higher performance compared to a brushed motor. It can also last longer.
