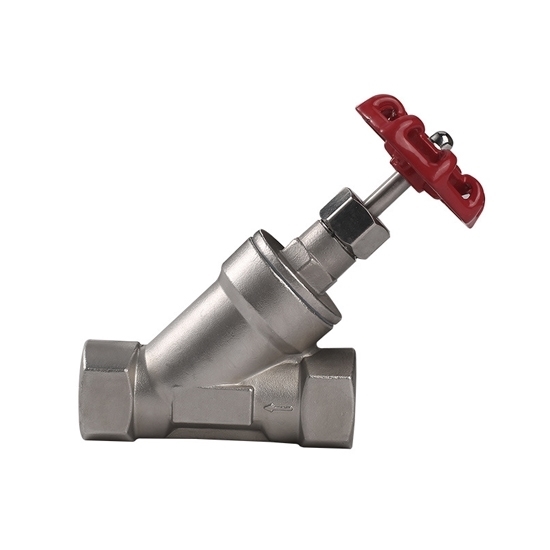

1/2" Manual Angle Seat Valve

1/2" Manual Angle Seat Valve
1/2" Manual Angle Seat Valve
0 reviews • Write a review
from
$60.99
Ex Tax: $60.99
  • Stock: In Stock
  • Model: RDDLZ-MANGLE-DN15
  • Weight: 1.00
  • SKU: RDDLZ-MANGLE-DN15

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DN15 angle seat valve features a manual handwheel for convenient manual operation, providing users with the flexibility to adjust flow rates as needed. Durable construction and reliable PTFE sealing make it suitable for various media, enhancing efficiency in fluid control systems.

Specification

  • Model: RDDLZ-MANGLE-DN15
  • Thread Port Size: 1/2 inch (DN15)
  • Working Medium: Air, Water, Oil, Gas, Steam
  • Body Material: 304 Stainless Steel
  • Driving Mode: Manual
  • Nominal Pressure: 1.6Mpa
  • Connection Type: Internal Thread

Manual Angle Seat Valve Dimension

  • G: 1/2 inch (DN15)
  • L: 85mm

Tips: Manual angle seat valve functions

A manual angle seat valve is a type of valve used to control the flow of fluid in various industrial applications. It functions by utilizing a pneumatically or manually operated piston to regulate the flow of the medium through a passageway. When the valve is closed, the piston is pressed against the valve seat, preventing the flow of fluid. To open the valve, the piston is lifted or pushed away from the seat, allowing the medium to flow through. This design offers excellent shut-off capabilities and precise flow control. Manual angle seat valves are commonly employed in applications where precise control over the fluid flow is essential, such as in steam systems, water treatment, and various industrial processes. Their simple operation and reliable performance make them a popular choice for controlling the movement of gases and liquids in industrial settings.
