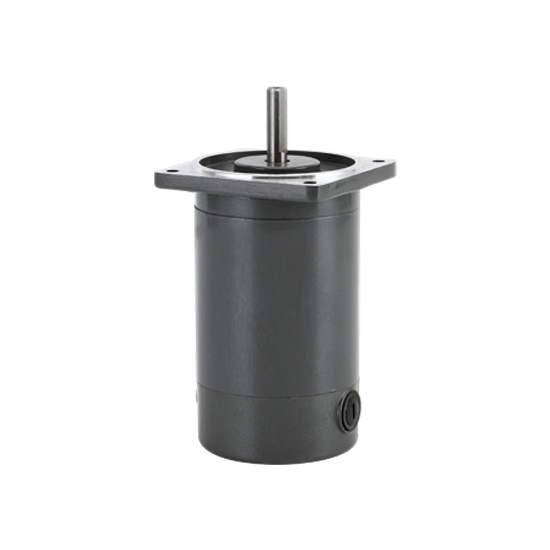

70 W DC Gear Motor, 1800 Rpm, 12V/24V

0 reviews • Write a review

from

$190.38

Ex Tax: $190.38

Stock: In Stock
Model: RDDLZ-BLDC-70
Weight: 1.00
SKU: RDDLZ-BLDC-70

Available Options

Short Description

Gear Ratio

Voltage (DC)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ 12V or 24V DC motor paired with a gearbox provides precise speed and position control, 70 watt power, 1800 rpm/min, 3.5 N.m torque, and a 5:1 to 18:1 gear ratio. This DC gear motor is compact, lightweight, and easy to install.

Specifications

Model	RDDLZ-DM09-12-70-1800	RDDLZ-DM09-24-70-1800
Power	70W
Voltage	12V	24V
Speed/min	1800 rpm
Current	9A	4.5A
Starting Torque	3.5 N.m	3.5 N.m
Gear Ratio	5, 7.5, 10, 12.5, 15, 18, Contact Us for Other Gear Ratios

Note 1: Motor voltage, power, and speed can be customized according to customer requirements, provided the available size allows.

Dimension (Unit: mm)

Wiring Diagram of Motor

Note 2: Standard lead length: 300mm±10; Model: UL1015; Type: AWG20. Lead length and type can be customized according to customer requirements, provided the available dimensions permit.

Tips: 12V DC Gear Motor vs. 24V DC Gear Motor

Feature	12V DC Gear Motor	24V DC Gear Motor
Operating Voltage	12V	24V
Speed & Torque	Lower speed and torque; suitable for light loads	Higher speed and torque; suitable for heavier loads
Power Consumption	Lower voltage, may need higher current for the same torque	Higher voltage, more efficient for medium to heavy loads
Applications	Small robots, hobby projects, electric locks, light appliances	Industrial automation, conveyors, large robotic arms, automotive systems
Controller Compatibility	Works with small controllers and batteries	Requires more robust controllers and power supplies
