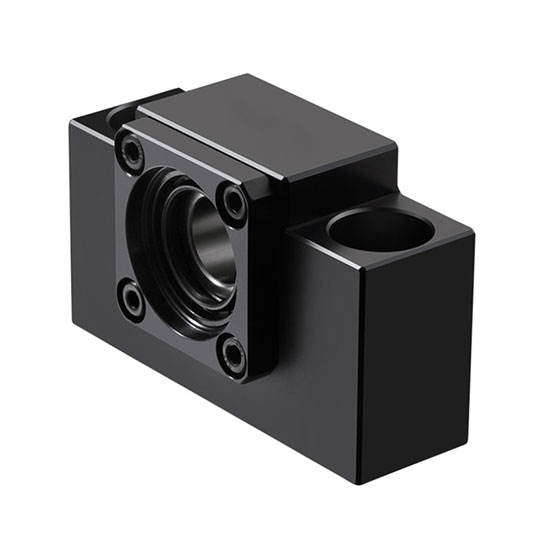

Ball Screw Bearing, Diameter 15mm

0 reviews • Write a review

from

$195.89

Ex Tax: $195.89

Stock: In Stock
Model: RDDLZ-BSB-AK
Weight: 1.00
SKU: RDDLZ-BSB-AK

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The diameter of the ball screw end support can be 8mm, 10mm, 15mm, 20mm or 25mm, low friction, low noise, high precision, easy to install and disassemble.

Note: Class C5 uses angular contact bearings preloaded with zero axial clearance.

Specification

Model	RDDLZ-BSB-AK8	RDDLZ-BSB-AK10	RDDLZ-BSB-AK15	RDDLZ-BSB-AK20	RDDLZ-BSB-AK25
Shaft Diameter	8mm	10mm	15mm	20mm	25mm
Accuracy Grade	C5	C5	C5	C5	C5
L	23	24	25	42	48
L1	/	6	6	10	13
L2	26	29.5	38	52	59
L3	4	6	5	10	14
B	52	70	80	95	105
H	32	40	49	58	68
h	17	22	28	30	35
B1	25	36	41	26	66
H1	26	32	40	45	25
P	38	52	60	75	85
d1	6.6	9	11	11	11
d2	11	14	17	17	/
e	11	11	15	15	/
M	M8 x 1.0	M10 x 1.0	M5 x 1.0	M20 x 1.0	M25 x 1.5
T	14	19	22	30	35
Applicable Shaft Diameter of Oil Seal	10	15	20	20	31
Weight	0.35kg	0.37kg	0.45kg	0.75kg	0.95kg
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Ball Screw Bearing Diameter 15mm Dimension (unit: mm)

Part Details

Number	Part Name	Quantity
1	Housing	1PC
2	Bearing	1 Set
3	Holding Lid	1 PC
4	Collar	2 PCS
5	Scal	2 PCS
6	Lock Nut	1 Set
7	Hexagon socket nut	1PC

How to install ball screw bearing?
RDDLZ ball screw bearing has 6 models, namely BK, BF, EK, EF, AK and AF, with high precision and stable rotation performance. The internal bearing of the ball screw support bearing contains an appropriate amount of lithium soap-based grease and is specially sealed. So these models can be used for a long time.
1. Install the fixed side to the screw.
2. Insert the fixed side, tighten the lock nut, and fix it with a spacer and a hexagon socket fixing bolt.
3. The support side bearing is fixed to the screw shaft with a stop ring, and installed in the support side support seat.
