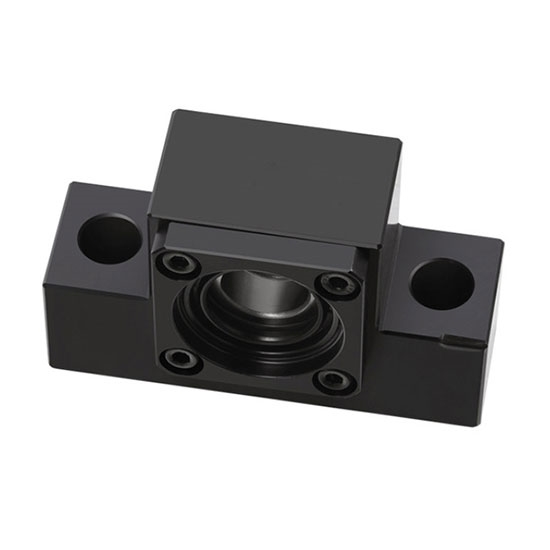

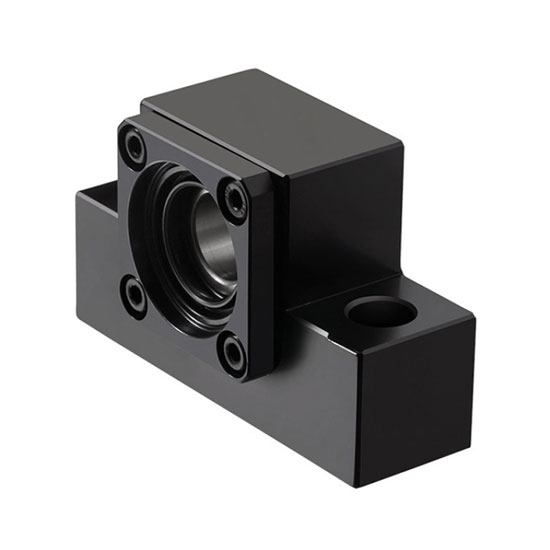

Ball Screw Bearing, Diameter 20mm

0 reviews • Write a review

from

$165.68

Ex Tax: $165.68

Stock: In Stock
Model: RDDLZ-BSB-EK
Weight: 1.00
SKU: RDDLZ-BSB-EK

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ball screw end support accuracy grade C5, diameter can be selected from 4mm, 6mm, 10mm to 20mm, the parts have low friction between the nut and the lead screw and have a long service life time.

Note: Class C5 uses angular contact bearings preloaded with zero axial clearance.

Specification

Model	RDDLZ-BSB-EK4	RDDLZ-BSB-EK6	RDDLZ-BSB-EK10	RDDLZ-BSB-EK15	RDDLZ-BSB-EK20
Shaft Diameter	4mm	6mm	10mm	15mm	20mm
Accuracy Grade	C5	C5	C5	C5	C5
L	15	20	24	25	42
L1	5.5	5.5	6	6	10
L2	17.5	22	29.5	36	50
L3	3	3.5	6	5	10
B	34	42	70	80	95
H	19	25	43	49	58
b±0.02	17	21	35	40	47.5
h1±0.05	10	13	25	30	30
B1	18	18	36	41	56
h	7	20	24	25	25
P	26	30	52	60	75
d1	4.5	5.5	9	11	11
d2	/	9.5	/	/	/
h	/	11		/	/
M	M2.6	M3	M3	M3	M4
T	10	14	16	22	30
Weight	0.06kg	0.14kg	0.46kg	0.55kg	1.35kg
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Ball Screw Bearing Dimension (unit: mm)

20mm Diameter Ball Screw Support Bearing Part Details

Number	Part Name	Quantity
1	Housing	1PC
2	Bearing	1 Set
3	Holding Lid	1 PC
4	Collar	2 PCS
5	Scal	2 PCS
6	Lock Nut	1 Set
7	Hexagon socket nut	1PC

Tips: The role of ball screw bearing
The two ends of the ball screw can be installed on a fixed seat and a support seat after processing. The support seat is a unity of the two methods. The fixing seat and the supporting seat are installed on both ends of the screw to fix the screw, and the mold uses ball screw bearings. Rotating. In fact, the two ends of the ball screw are installed at the two ends of the ball screw to fix the wire.
