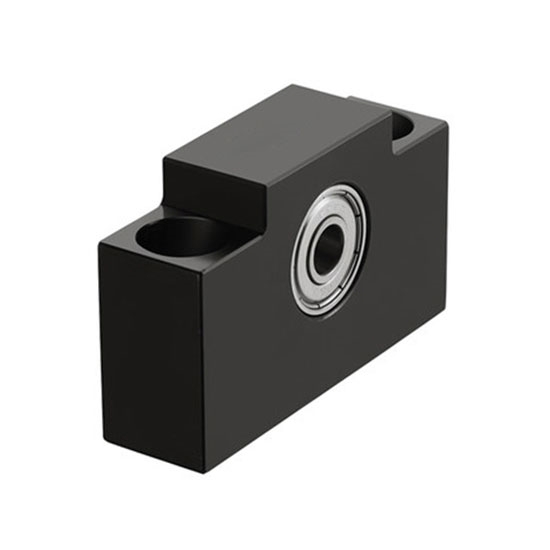

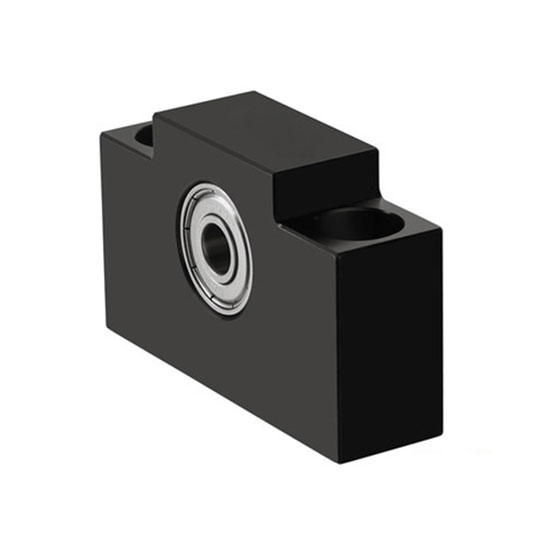

Ball Screw Bearing, Diameter 25mm

0 reviews • Write a review

from

$132.89

Ex Tax: $132.89

Stock: In Stock
Model: RDDLZ-BSB-AF
Weight: 1.00
SKU: RDDLZ-BSB-AF

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ball screw bearing shaft diameter can be selected from 10mm, 12mm, 15mm, 25mm, bearing contact angle of 45°, small ball diameter and large number of balls. It is an ultra-small angular contact ball bearing with high rigidity and high precision, which can obtain stable rotation performance.

Note: C7 level uses deep groove ball bearings to a maximum clearance of 0.005-0.1mm.

Specification

Model	RDDLZ-BSB-EF6	RDDLZ-BSB-EF10	RDDLZ-BSB-EF12	RDDLZ-BSB-EF15	RDDLZ-BSB-EF25
Shaft Diameter	6mm	8mm	10mm	15mm	25mm
Accuracy Grade	C7	C7	C7	C7	C7
L	12	20	20	20	42
B	42	70	70	80	10
H	25	40	43	50	50
h	13	22	25	*3	10
B1	18	36	36	41	95
H1	20	21	24	25	58
P	30	52	52	60	47.5
V	17	22	26	32	30
d1	5.5	9	9	11	56
d2	9.5	/	/	/	/
e	11	/	/	/	/
Use Bearings	B606ZZ	B608ZZ	B6000ZZ	B6002ZZ	B6205ZZ
Use Ring Buckle	STWN.S6	STWN.S8	STWN.S10	STWN.S15	STWN.S25
Weight	0.06kg	0.14kg	0.46kg	0.55kg	1.35kg
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Ball Screw Bearing Diameter 25mm Dimension (unit: mm)

Part Details

Number	Part Name	Quantity
1	Housing	1 PC
2	Bearing	1 Set
3	Snap Ring	1 PC

Tips: What is a ball screw?
Ball screw is an ideal product that converts rotary motion into linear motion, or converts linear motion into rotary motion.
Ball screw is the most commonly used transmission element in tool machinery and precision machinery. Its main function is to convert rotary motion into linear motion, or convert torque into axial repetitive force, and it has both high precision, reversibility and high Features of efficiency. Because of its small frictional resistance, ball screws are widely used in various industrial equipment and precision instruments.
