2" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$240.19

Ex Tax: $240.19

Stock: In Stock
Model: RDDLZ-ANGLE-50
Weight: 1.00
SKU: RDDLZ-ANGLE-50

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

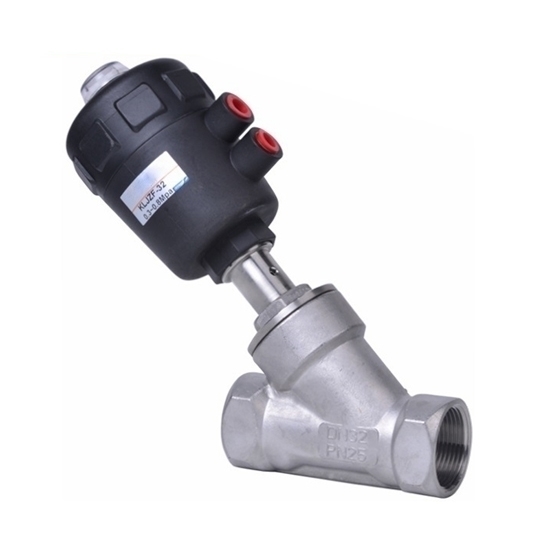

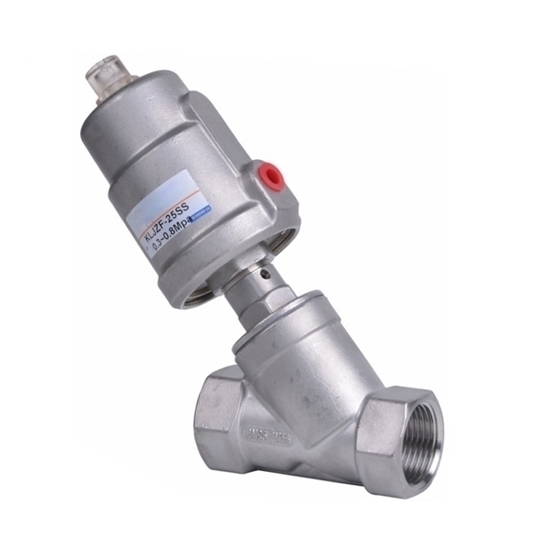

DN50 pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle slanted seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN50
Pipe Thread Type: 2 inch (DN50), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
63	76	42	ZG1/8"	ZG2"	195	205	136	22

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
80	ZG2"	149	265	25	100	60	120	220

Tips: Pneumatic angle seat valve working principle

Single-acting working principle: When no compressed air is input to the cylinder, the angle seat valve is in the normally closed or normally open position due to the spring force. When compressed air enters the cylinder, the pressure of the air source pushes the piston and overcomes the spring force to move, thereby causing the valve to open or close.
Double-acting working principle: when the compressed air enters the cylinder, it pushes the piston from bottom to top to open the angle seat valve, and vice versa, the compressed air pushes the piston from top to bottom to close the valve.
