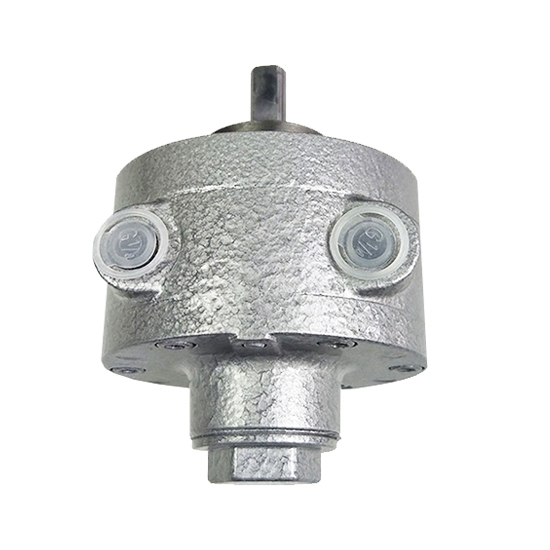

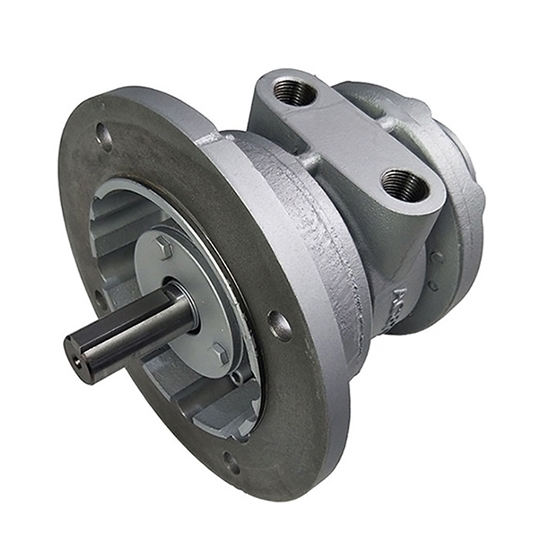

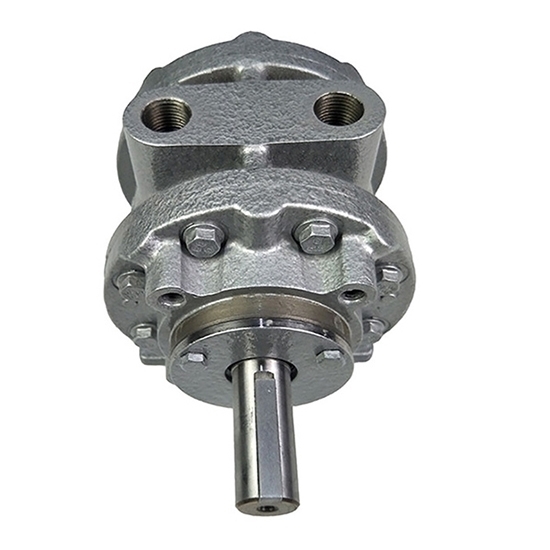

5hp (3.9kW) Pneumatic Vane Air Motor

0 reviews • Write a review

from

$890.31

Ex Tax: $890.31

Stock: In Stock
Model: RDDLZ-PVAM-HX8AM
Weight: 1.00
SKU: RDDLZ-PVAM-HX8AM

Available Options

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3900 watt pneumatic vane air motor offers three installation methods to choose, maximum torque 300 rpm rotate speed, it is widely used in rock drilling of mine, drilling, ship, metallurgy, chemical engineering, and papermaking etc.

Specification

Model

Operation Data

Maximum Torque

Weight

Installation Method

Color

Certification

Warranty

Power

Torque

Rotate Speed

Air Consumption

Rotate Speed

Torque

lb.in

rpm

m³/ h

cfm

rpm

lb.in

RDDLZ-HX8AM-H

5.25

3.9

14.4

132

2500

293

175

300

185

10.7

Foot Mounting

Gray

12 months

RDDLZ-HX8AM-V

10.4

Face Mounting

RDDLZ-HX8AM-ARV-70

13.2

IEC Flange

Dimension (unit=inch/mm)

Details

Tips: The Characteristics of Pneumatic Vane Air Motor.

The figure below is the characteristic curve of a vane air motor made under a certain working pressure. It can be seen from the figure that the air motor has the characteristics of soft characteristics. When the applied torque T is equal to zero, it is idling. At this time, the speed reaches the maximum value, and the power output of the air motor is equal to zero; when the applied torque is equal to the maximum torque of the air motor, the motor stops rotating, and the power is also equal to zero at this time; When the applied torque is equal to half of the maximum torque. The rotation speed of the motor is also 1/2 of the maximum rotation speed. At this time, the output power P of the motor is the largest, which is indicated by.
