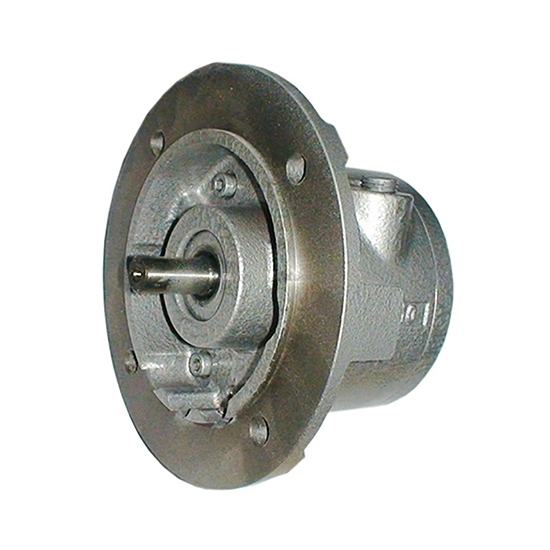

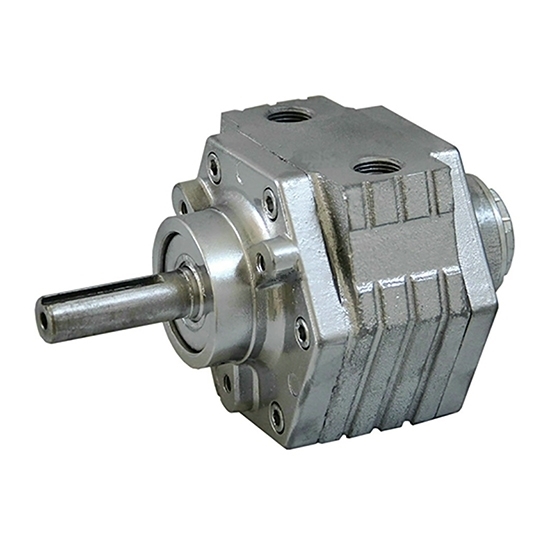

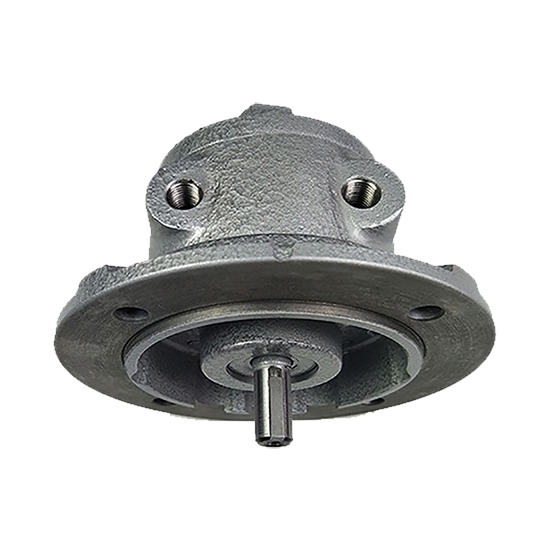

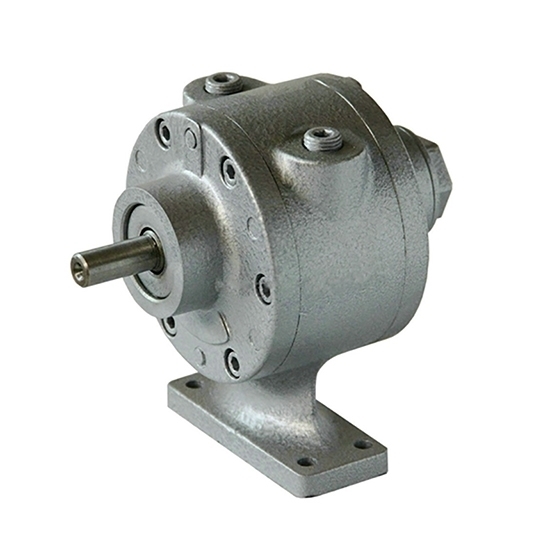

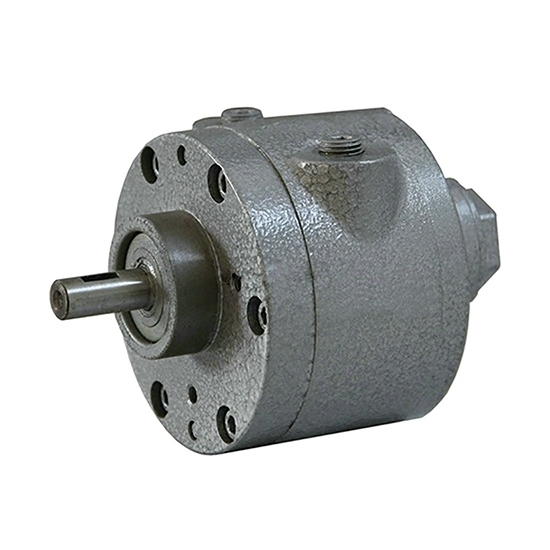

1.5hp (1.2kW) Pneumatic Vane Air Motor

0 reviews • Write a review

from

$464.45

Ex Tax: $464.45

Stock: In Stock
Model: RDDLZ-PVAM-HX4AM
Weight: 1.00
SKU: RDDLZ-PVAM-HX4AM

Available Options

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost vane air motor online for sale, with 1.7hp rated power, 3000rpm rotate speed, 78 cfm air consumption. Light weight, easy to operate, low noise and long lifetime.

Specification

Model

Operation Data

Maximum Torque

Weight

Installation Method

Color

Certification

Warranty

Power

Torque

Rotate Speed

Air Consumption

Rotate Speed

Torque

lb.in

rpm

m³/ h

cfm

rpm

lb.in

RDDLZ-HX4AM-H

1.5

1.2

4.1

3000

132.5

300

6.3

3.3

Foot Mounting

Gray

12 months

RDDLZ-HX4AM-V

3.5

Face Mounting

RDDLZ-HX4AM-F110

4.7

IEC Flange

Dimension (unit=inch/mm)

Details

Tips: The Features of Pneumatic Vane Air Motor.

Van air motors have some prominent characteristics, in some industrial occasions. It is more suitable than electric motors and hydraulic motors. These features are:

It has explosion-proof performance. Due to the characteristics of the working medium of the air motor and the consideration of structural design, it can not produce sparks during work, so it is suitable for explosive, high temperature and dusty occasions, and can be used in extremely humid air Environment without the risk of leakage.
The soft characteristics of the motor itself enable it to work at full load for a long time, with a small temperature rise and overload protection.
It has higher starting torque and can start with load.
Easy to follow directions. The operation is simple, and stepless speed regulation can be realized.

However, pneumatic motors also have shortcomings such as low output power, large air consumption, low efficiency, high noise, and easy vibration.
