50mm Magnetostrictive Displacement Measurement Sensor

0 reviews • Write a review

from

$1,218.89

Ex Tax: $1,218.89

Stock: In Stock
Model: RDDLZ-MSR-A0050
Weight: 1.00
SKU: RDDLZ-MSR-A0050

Available Options

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

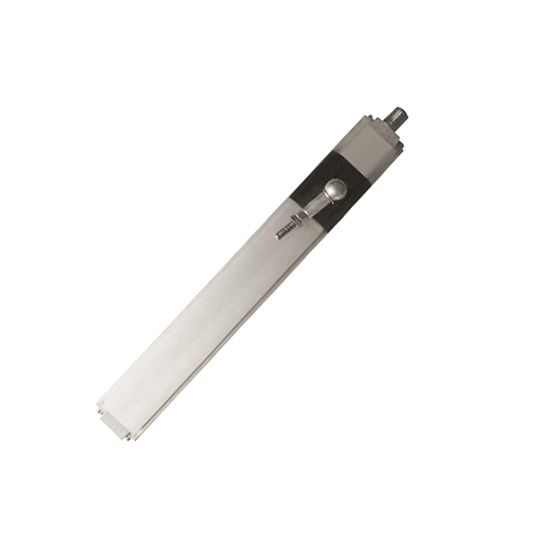

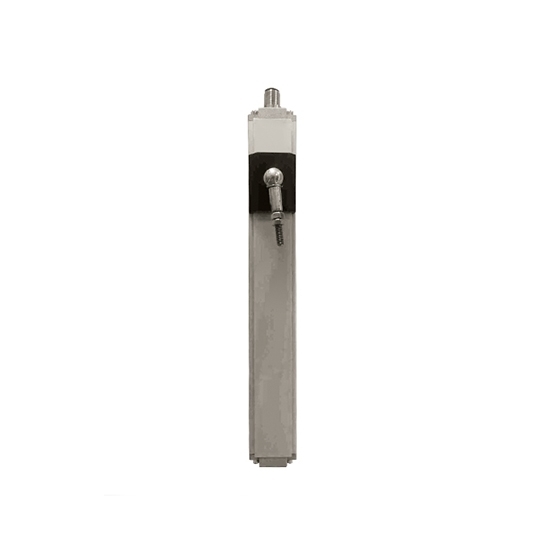

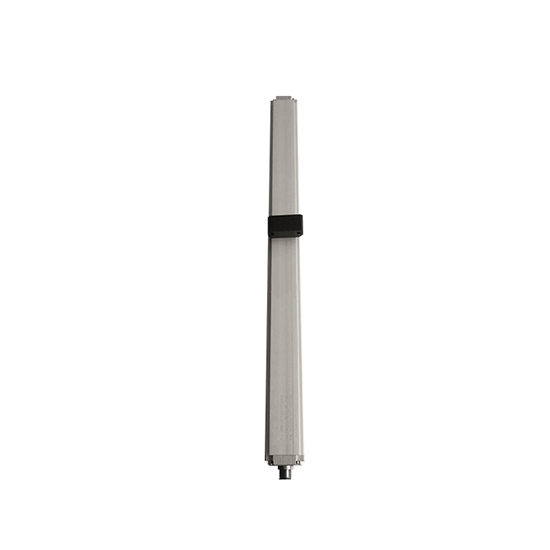

Magnetostrictive linear displacement sensor with measuring range 50mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Model	RDDLZ-CTH-A-50
Measuring Range	50mm
Output Signal	0~5V/ 0~10V/ 0~20mA/ 4~20mA (Optional)
Linearity	≤±0.05%FS
Repeatability	≤±0.005%FS
Resolution	Infinite resolution (depending on controller AD and power supply ripple)
Hysteresis	≤0.001%FS
Temperature Drift	≤0.001%FS
Operating Voltage	24VDC
Current Draw	5~16mA
Vibration	5g/10-2000Hz/IEC Standard IEC Standard 68-2-6
Temperature	-40°C~+85°C
Load Characteristics	Voltage output load resistance ≥3KΩ
Load Characteristics	Current output load resistance ≤1KΩ
Connection Type	Slide type or magnetic levitation type
Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:

Tips: What is magnetostrictive displacement sensor?
Magnetostrictive displacement sensor indicates a kind of displacement detecting device developed based on ferromagnetic material magnetostrictive effect. With special advantages such as high reliability, high resolution, non-contact measurement and oil & stain resistance, etc., it could be used for continuously, precisely and real-time detecting the displacement (position) and velocity of various moving parts under abominably industrial environment. As an important component to realize precise operation and control, it can substantially enhance the precision and efficiency of the whole system. It is applicable for detecting the stroke or position of mechanical device with rectilinear motion. Precision servo feedback control of hydraulic system is one of its most typical applications.
