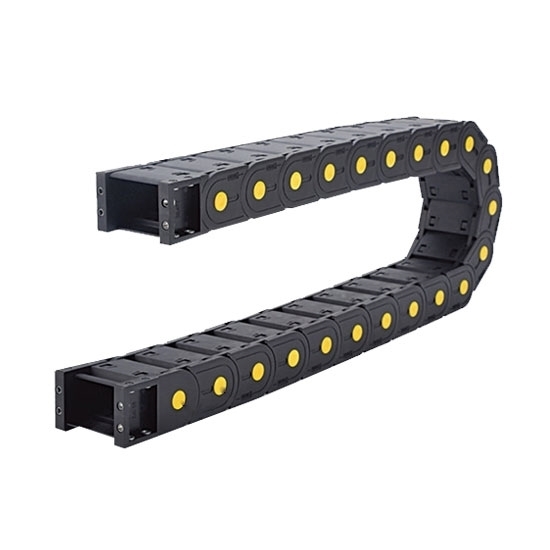

Cable Drag Chain, 40 X 60mm

Cable Drag Chain, 40 X 60mm
Cable Drag Chain, 40 X 60mm
0 reviews • Write a review
from
$84.97
Ex Tax: $84.97
  • Stock: In Stock
  • Model: RDDLZ-CDC-H40
  • Weight: 1.00
  • SKU: RDDLZ-CDC-H40

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cable drag chain inner size  40 x 60mm, 40 x 75mm, 40 x 100mm and 40 x 200mm to choose from, length 1 meter, 2 meters, 5 meters and 10 meters can be customized.

Note: cable drag chain length can be customized, please contact us.

Specification

ModelRDDLZ-CDC-H4060RDDLZ-CDC-H4075RDDLZ-CDC-H40100RDDLZ-CDC-H40150RDDLZ-CDC-H40200
Inner Height4040404040
Inner Width6075100150200
Outer Height6060606060
Outer Width7398123173223
Bending Radius ®75mm, 100mm, 125mm, 150mm, 200mm, 250mm
Open ModeBridge typeBridge closedBridge closedBridge typeBridge type
Pitch Distance66
Bridge Weight1.83kg1.95kg2.09kg2.33kg2.7kg
Closed Weight/2.13kg2.32kg//

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 66mm, excluding the number of joints per meter= 15, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R75100125150200250
H210260310360460560
D171196221246296345
K396475553632789946

DimensionRDDLZ-CDC-H4060RDDLZ-CDC-H4075RDDLZ-CDC-H40100RDDLZ-CDC-H40150RDDLZ-CDC-H40200
A2424242424
B2626262626
C7590115165215
D88103128178228
E1616161616
Aperture (φ)88888


Tips: Cable drag chain application

Cable drag chain is suitable for use in reciprocating motion occasions, which can traction and protect the built-in cables, oil pipes, air pipes, water pipes, etc. Each section of the drag chain can be opened for easy installation and maintenance. During exercise, it has low noise, wear resistance, and high-speed movement. Drag chains have been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, door and window machinery, injection molding machines, manipulators, lifting and transportation equipment, automated warehouses, etc.
