30kVA 3-Phase 220v 60Hz/400v 50Hz Frequency Converter

Free Shipping

30kVA 3-Phase 220v 60Hz/400v 50Hz Frequency Converter

0 reviews • Write a review

from

$11,833.47

Ex Tax: $11,833.47

Stock: In Stock
Model: HZ-50-3330
Weight: 1.00
SKU: HZ-50-3330

Available Options

Input Voltage (Three Phase)

Wiring Type

Output Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Affordable price 30 kVA static frequency converter, change 60 Hertz to 50 Hertz, boost 208V 240V to 400V/415V, output three phase or single phase, pure sine wave AC power source.

Specification:

Model	HZ-50-3330
Capacity	30 kVA
Dimension	9008001200 mm
Weight	330 kg

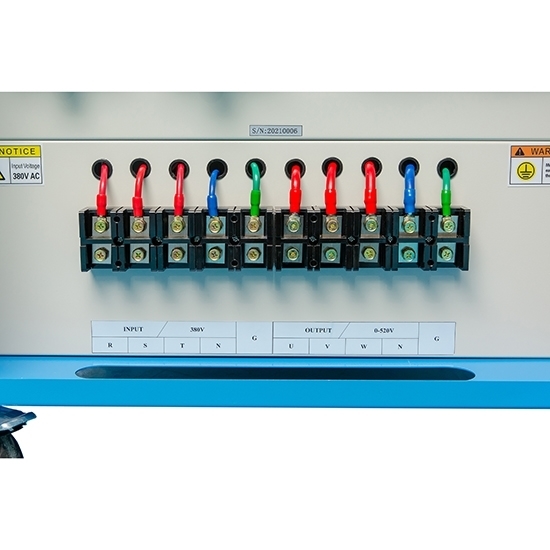

Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 83.2A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 41.6A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

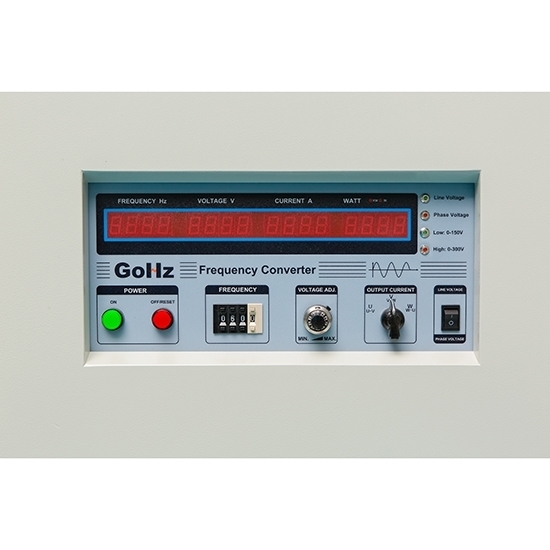

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Tips: Why choose frequency converter?

Since the power source of various countries in the world are not uniform, the production of export products needs to simulate the electric grid conditions of different countries to test various export appliances. In the past, the generator was used for secondary frequency conversion, but the power consumption was large, the noise was large, and the stability was poor. The frequency converter is a kind of precision power supply that converts the mains into the required voltage and frequency through the power conversion circuit. It can convert 50Hz to 60Hz or 60Hz to 50Hz, output pure sine wave, and can provide standard voltage and frequency of various countries in the world, suitable for voltage and frequency testing of export products. More and more countries select frequency converter as a standard power supply.
