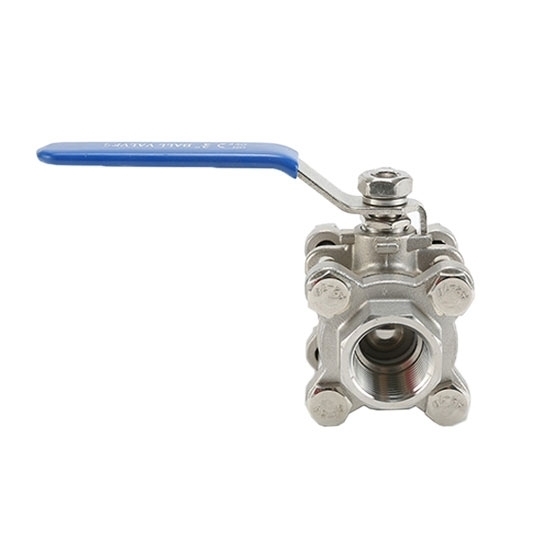

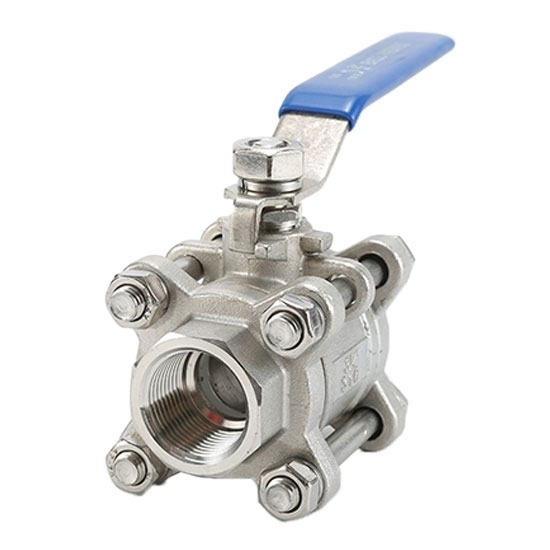

3 Piece Stainless Steel Ball Valve, 1 Inch

0 reviews • Write a review

from

$137.67

Ex Tax: $137.67

Stock: In Stock
Model: RDDLZ-BV-Q11F-1
Weight: 1.00
SKU: RDDLZ-BV-Q11F-1

Available Options

Short Description

Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost stainless steel ball valve, 1 inch size, threaded connection, high temperature and high pressure, flexible use, 90-degree rotary control switch.

Specification

Model	RDDLZ-BV-Q11F-1
Connection Method	Internal Thread
Material	304 Stainless steel/316 stainless steel
Operating Temperature	-20℃~+150℃
Pressure Rating	1000 PSI W.O.G
Pressure Test	API598
DN	22
Size	1 Inch
Weight	3 kg
Warranty	12 Months
Certificate	ISO 9001: 2008

1 Inch Ball Valve Dimension (unit: mm)

Size	A	A1	B	C	ΦD	ΦE	F	ΦG	ΦH	ΦI	J	K	L
1/2 Inch	3.62	3.62	2.81	5.70	0.98	1.33	0.72	1.19	1.32	1.05	2.82	3.78	2.56

Three Piece Ball Valve Applications

Tips: The difference between one-piece, two-piece and three-piece ball valve

The essential difference lies in the structure of the valve body. The one-piece type is fixed by a plug head, which is very convenient and practical for maintenance. The two-piece type is more common. The two-piece valve body clamps the ball to fix it, but it is more troublesome to maintain. The tightness of the screw in the middle is very important. The switch cannot be tightened, and the steam will leak if it is loose. The three-piece ball valve is similar to the two-piece ball valve, but there is an extra valve body in the middle of the ball, which is clamped by flanges with necks on both sides.
