3/4 Hp Piston Air Motor, 700 Rpm, 507 L/min

0 reviews • Write a review

from

$1,098.41

Ex Tax: $1,098.41

Stock: In Stock
Model: RDDLZ-DAM6
Weight: 1.00
SKU: RDDLZ-DAM6

Available Options

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price piston air motor with max. no-load speed 1400 rpm, starting torque 6.28 Nm, stopping torque 7.84 Nm. Lower cost pneumatic piston motor offers low noise, light weight and long service life advantages.

Specification

Model	RDDLZ-DAM6
Power	3/4 hp
Gear ratio	1:1
Rated speed	700 rpm
Rated torque	4.4 Nm
Max. no-load speed	1400 rpm
Air consumption	507 L/min
Starting torque	6.28 Nm
Stopping torque	7.84 Nm
Mounting type	Basic type/ flange type/ foot type
Certificate	CE
Warranty	12 months

Dimension

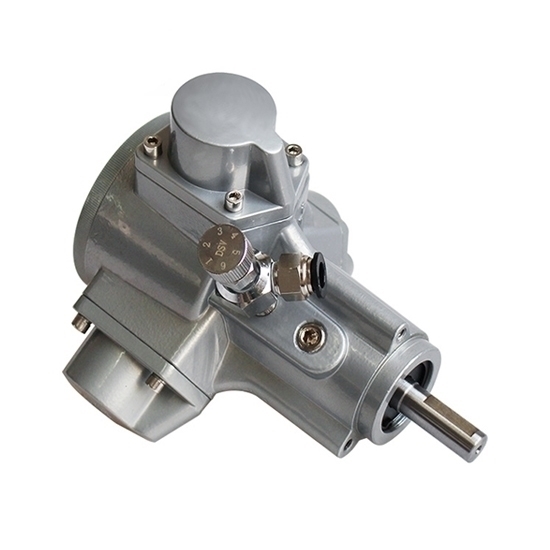

Basic type

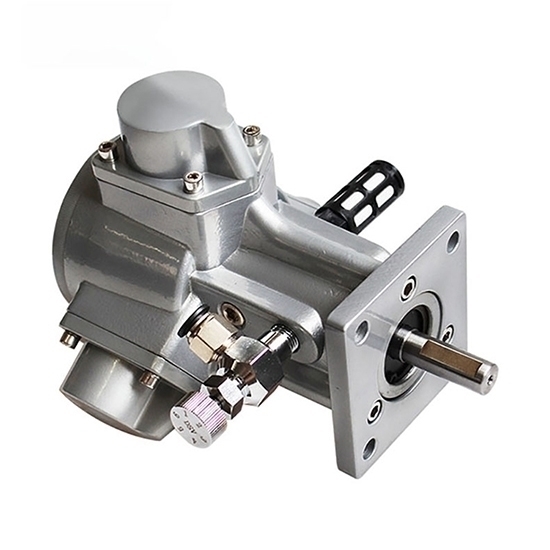

Flange type

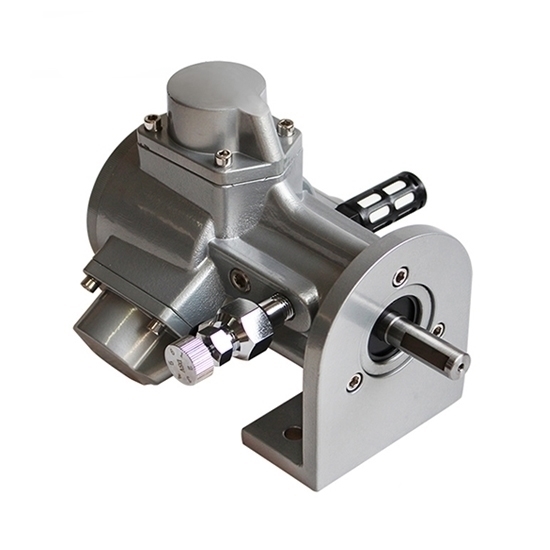

Foot type

Model	Dimension (mm)
Model	A1	A2	A3	A4	B	C	C1	D	E	F	G	H	J	M	N	M1	N1	M2	N2	Q	Q1	P
RDDLZ-DAM5	237	196	190	195	175	16	80	14	4	46	M6	62h7	30	106	80.5	130	100	70	42	9	9	95

Details

Tips: Faults and Troubleshooting Methods of Piston Air Motor.

Insufficient output speed, insufficient power.
1. Reason analysis.
(1) The valve is installed reversely.
(2) Wear of cylinder and piston ring.
(3) Low air pressure.
(4) The inlet pipe and accessories have too small diameter, which is severely blocked or blocked.
(5) Poor exhaust.
2. Elimination method.
(1) Reinstall.
(2) Replace parts.
(3) Adjust the pressure.
(4) Check the pipeline and its accessories to ensure that the diameter meets the requirements.
(5) Check the main and auxiliary exhaust pipes to ensure that the diameter of the exhaust pipe and the diameter of the intake pipe meet the requirements.
