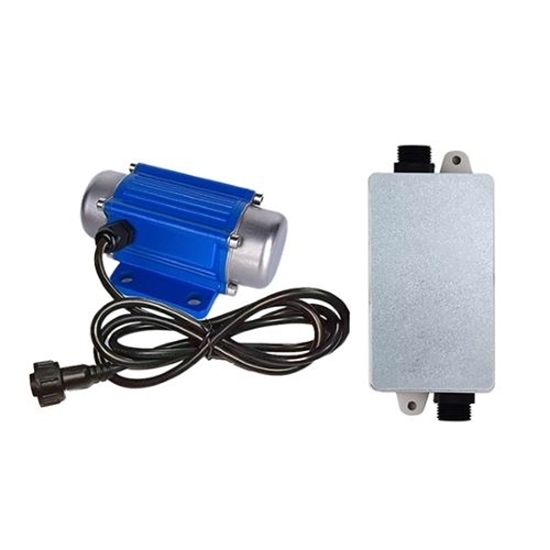

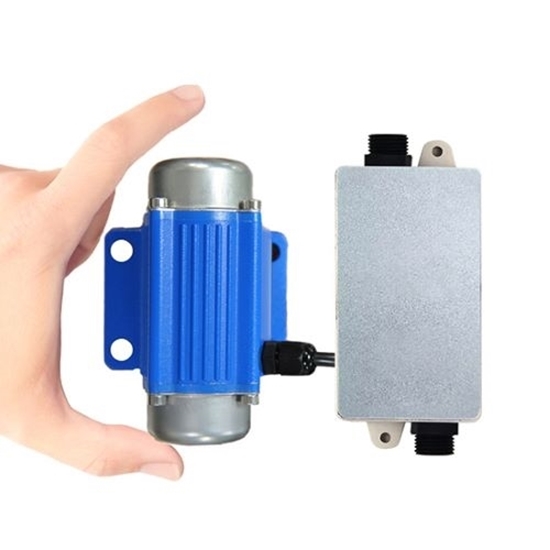

20W 24V DC Brushless Vibration Electric Motor With Controller

0 reviews • Write a review

from

$552.46

Ex Tax: $552.46

Stock: In Stock
Model: RDDLZ-20DCBVM12-Z03
Weight: 1.00
SKU: RDDLZ-20DCBVM12-Z03

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided 20W brushless vibrating motor operates at 24 volt DC voltage and 7,000 rpm high speed, designed for concrete mixer trucks, construction site vibrating rulers, highway snowplows, small vibrating screens, vegetable washers and other equipment.

Features

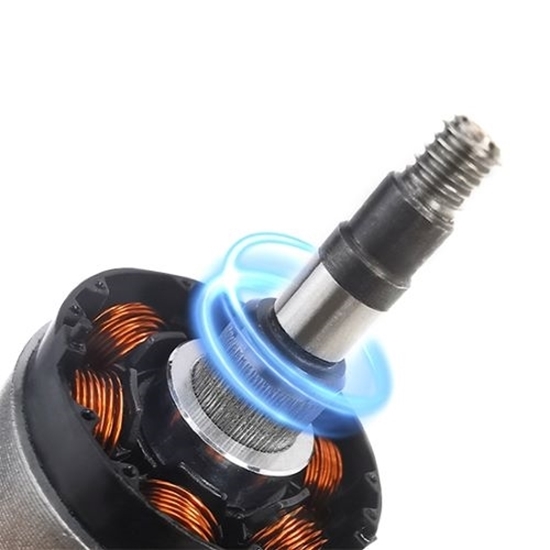

20W 24V DC brushless vibration motor is designed for consistent operation with extended durability, capable of adjusting rotation speed as needed.
It features computer-based speed control and electrode start-stop technology, ushering in the era of smart vibration motors.
This industrial DC vibration electric motor ensures low heat generation and fast heat dissipation, providing excellent energy efficiency and extended service life.
IP 65 Dustproof & Waterproof: Built to withstand harsh environments, can continuous operation for up to 24 hours.

Specifications

Controller model	RDDLZ-XJH-68S-8AD-RS
Vibration meter model	RDDLZ-PT-MVB5DCB24
Rated Speed	7000rpm
Rated Voltage (Motor & Controller)	24V
Rated Current	1.5A
Power	20W
Protection Rank	IP65 (Dustproof and Waterproof)
Working System	S1 (Continuous Duty)
Weight	20kg
Material	Aluminum alloy
Dimensions	107mm x 60mm x 40.7mm
Insulation Grade	F (The Highest Heat Resistant Temperature is 155℃)

Dimension (Unit: mm)

Applications

RDDLZ 20W 24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

Tips: 20W 24V DC Brushless Vibration Motor Controller Installation instructions

It is necessary to install and use drivers correctly, as DC vibration electric motors require controllers to operate.

Control/power input terminal:

Brown blue thick wire, connect to 24V DC power supply, be careful not to connect positive/negative in reverse. Brown is connected to positive pole+, blue is connected to negative pole -.
Blue and black thin wires can be connected to an additional start-stop switch, and the vibration motor can be started and stopped without the need for a computer.
Red and yellow thin lines, connected to USB to RS485 adapter, red connected to A, yellow connected to B.

Motor control output terminal:

The bare wire version should be connected to the driver, and the corresponding color should be connected. After connection, pay attention to insulation.
The aviation plug can be directly inserted into the controller output port and tightened to complete the installation.
